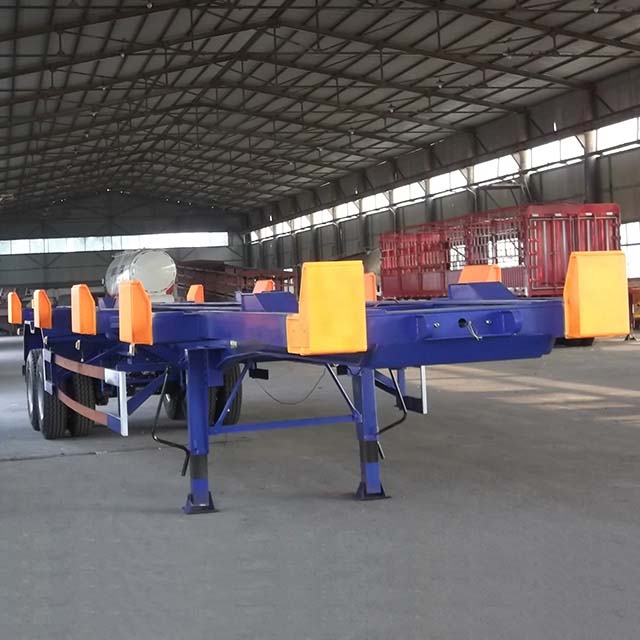

20ft Container Terminal Trailer

The 20ft Container Terminal Trailer is a specialized semi-trailer for transporting 20ft container.It is an off-highway semi trailer and is used to transport containers within the terminal.
The Terminal Trailer can be optionally equipped with a guide device and a limit device to realize the rapid positioning of the container. Moreover, the loading operation is fast, which can improve the loading, unloading and transshipment efficiency of the container.

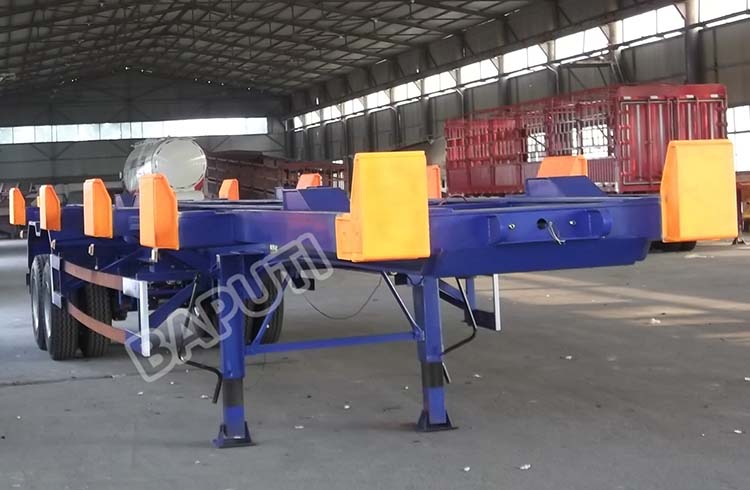

Terminal container trailer can be installed with guiding devices at the front and rear ends and both sides of the vehicle, and a movable limit device can be installed in the middle, which is convenient to operate.

The skeleton terminal trailers choose Q345B carbon or T700 high strength steel, and we adopt world famous brand of parts, like JOST, WABCO braking valve, BPW/FUWA axle etc.,which made the whole trailer quality strong quality.

Except 20ft terminal trailer, we also produce 40ft, 45ft, 48ft,52ft skeletal trailers, with 2 axle, 3 axle, 4 axles.

We can also customize the container chassis according to customer’s need.

Specification:

Overall dimension: 7260x2500x1700mm

Container twist lock: 4 pieces

Loading weight: 35000kg

Main beam : Carbon steel Q345B.The height 500 mm, upper plate 14mm,down plate 16mm,middle plate 8mm.

Side beam: 16mm channel steel

Traction pin: 2” (50mm) or 3.5’’(90mm) optional

Land gear: Standard 28ton

Axle: 13ton * 2 axle Fuwa brand

Spring leaf: 90mm*13mm*10 pieces

Suspension: Mechanical suspension (Airbag suspension optional)

Tire: 12R22.5, 8 pieces

Valve: WABCO RE 6 relay valve

Brake Chamber: T30/30+T30 Spring brake chamber

Tool box: 1 piece

Spare wheel carrier: 2 pieces

Marker lamp: LED type

Voltage: 24V

Receptacle: 7ways (7 wire harness)

Painting:  Complete  Chassis  sand  blasting  to  clean  rust,  1  coat  of  anti-corrosive prime, 2 coats of final paint
