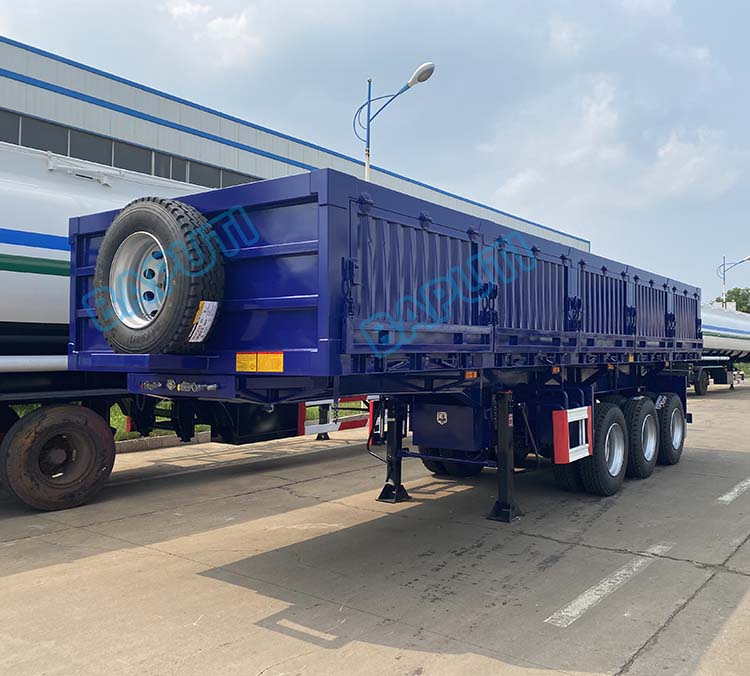

34 Ton Side Tipper Trailer for Sale

BAPUTI design and produce strong structure 34 ton side tipper trailer. BAPUTI Side tipper trailer are with loading capacity ranging from 30ton to 80ton,mainly transporting sand,aggregate,gravel, grain, coal and other goods, widely used in sandstone plant, construction site and mine site. The side tipper semi trailers are suitable for short-distance transportation in mining areas and medium and long-distance road transportation, with stronger torsion resistance, off-road performance and durability.

Specification of 34 ton side tipper trailer:

Overall Dimension (Lx W x H)(mm): 11300x2500x3400mm

Inner Dimension:  10500x2300x1200mm

Main Beam: Double beam, upper plate 16mm, middle plate 10mm, bottom plate 18mm

Axle : 13ton axle, 3 pieces, FUWA

Lifting:  Standard 150 lifting （5+1）

Suspension system:  Mechanical suspension

Load capacity(kg): 34000

Thickness:  bottom:8mm, side:4mm

Traction Pin:   JOST 50mm/90mm

Tire Type and quantity:  11.00R10, 12 pieces

Landing Gear:   Standard 28ton

Brake system:  braking system

Brake air chamber  Two double and two single chamber

Electrical system:   1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Painting:  Color as customer’s requirement

Features of BAPUTI side tipper trailer:

1. The interior of the tipper carriage is smooth without dead ends, making unloading cleaner, more efficient and safer.

2. Dual-air braking system: Applying well-known imported braking systems such as WABCO, with reasonable arrangement, fast and safe braking, and lower failure rate

3. Circuit system: 12-24V multi-voltage change, LED lamps, can be matched with various brands of tractor trucks, and the driving safety is higher.

4. The main structure of the tipper trailer adopts high-strength structural steel, the whole vehicle is light in weight and heavy in load, and the main beam adopts strength analysis and advanced design concept to achieve the best bearing effect.

5.Several lifting cylinders are installed on the frame of the side dump semi-trailer, which can lift the cargo box to a certain angle and quickly unload the loaded materials from the side of the box body;

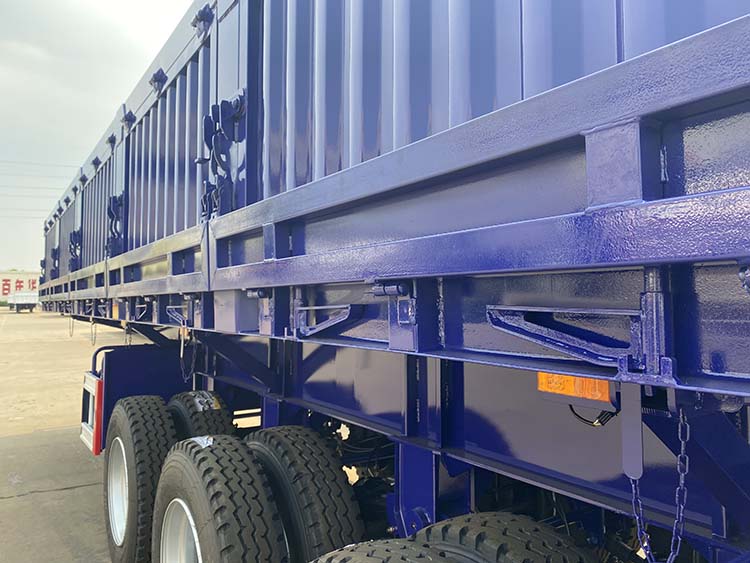

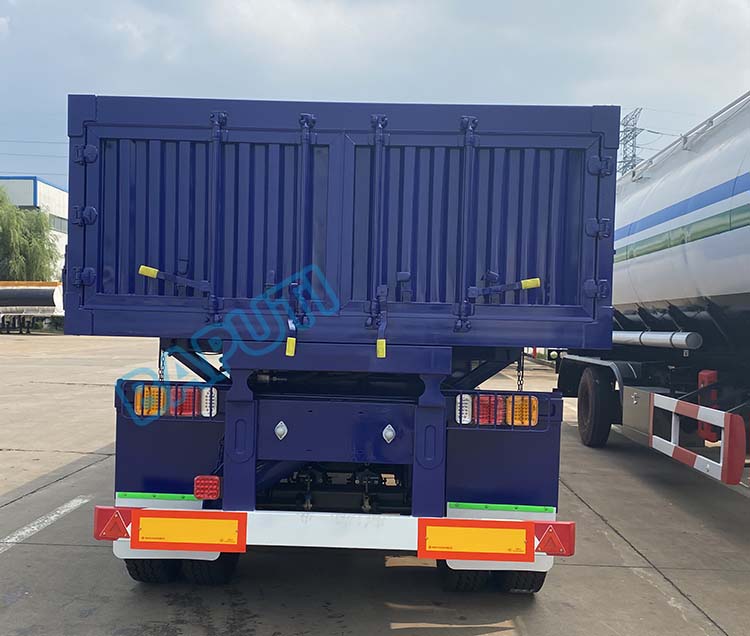

6.There are upturned side doors on both sides of the cargo box of the side dump semi-trailer, which are locked with a container lock. A pair of container doors can be installed at the rear of the side dump semi-trailer;

7.The rear of the side dump semi-trailer can be optionally equipped with a self-rescue oil cylinder, which can lift the rear of the vehicle and move it a certain distance to one side to solve the problem of the semi-trailer's cargo buried tires.

8. The tipper trailer has strong load-bearing and lifting capacity, standard leaf spring suspension system and airbag suspension are optional.
