Product Description
BAPUTI design and produce strong structure dump trailer, with loading capacity ranging from 30ton to 80ton,mainly transporting sand,aggregate,gravel, grain, coal and other goods, widely used in sandstone plant, construction site and mine site. It is suitable for short-distance transportation in mining areas and medium and long-distance road transportation, with stronger torsion resistance, off-road performance and durability.
For the end dump semi trailer box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition.
Tipper semi trailer box dimensions, shape and box plate thickness all can be customized by different cargo needs.
We cooperate with high quality axles, suspensions, brake system and hydraulic cylinders.
BPW, FUWA worldwide best axles work, WABCO brake valve, Strong quality springs and suspension, reliable hydraulic HYVA cylinder,specialized for tipping trailers.

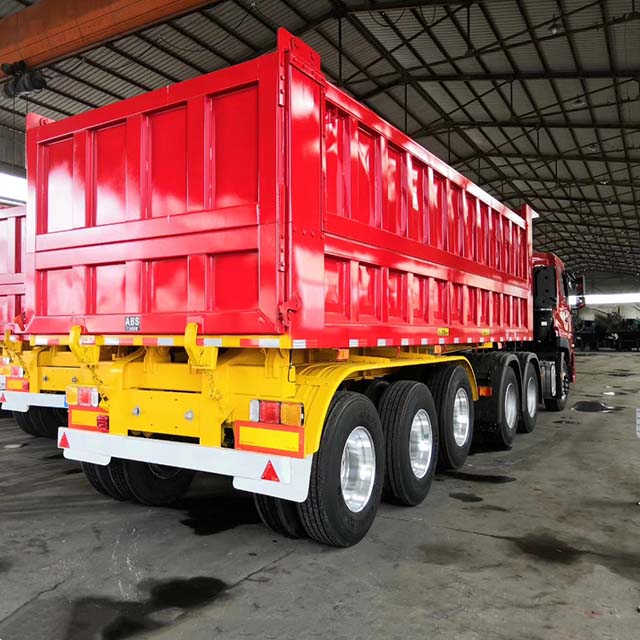

Specification of 40T high side end dump trailer:
Volume: 30cbm
Loading capacity: 40T
Size: 9000x2500x3450mm
Chassis (I beam):500mm height
Top flange plate :Material and thickness Q345 16mm
Bottom flange plate : Material and thickness Q345 18mm
Middle flange plate : Material Q345,10mm thickness
Box :4mm thickness, 1500mm height ,Q345
Floor : Carbon steel Q345, Material, 6mm thickness
Lifting Cylinder:HYVA 196-5-7300
Axle: FUWA 13ton axle, 3 pieces
Tire :Triangle brand, 12R22.5, 12 pieces
Suspension: Mechanical suspension
King pin:Bolts type ,2 inch
Brake system: Air tank 45L air tanks
Brake chamber: 4 double spring brake chamber
Landing gear:JOST ,A300 two speed
Spare tire carrier :One
Light : LED light
Voltage : 24v
Receptacle :7 ways(7wire harness)and quick change type
Tool box: One piece
Painting: Polyurethane paint&anti-rust primer&sand blasting
Tools for trailer : Head wrench ;spare wheel crank
Features of end dump trailer:
1. Enlarge the U-shaped section carriage, the center of gravity is about 200mm lower, and the volume is larger.
2. The interior of the tipper carriage is smooth without dead ends, making unloading cleaner, more efficient and safer.
3. Dual-air braking system: Applying well-known imported braking systems such as WABCO, with reasonable arrangement, fast and safe braking, and lower failure rate
4. Circuit system: 12-24V multi-voltage change, LED lamps, can be matched with various brands of tractor trucks, and the driving safety is higher.
5. The main structure of the tipper trailer adopts high-strength structural steel, the whole vehicle is light in weight and heavy in load, and the main beam adopts strength analysis and advanced design concept to achieve the best bearing effect.
6.The internationally renowned hydraulic system is adopted, which saves time and effort, is safe and reliable, and improves the efficiency of cargo transportation and unloading.At the front of the tipper trailer is equipped with a multi-stage oil cylinder, which can lift the cargo box to a certain angle. The hydraulic oil cylinder is simple and reliable to install and easy to maintain. With control functions such as lifting, intermediate stop, and lowering, the loaded materials can be quickly unloaded from the rear of the tipper trailer.
7. The tipper trailer has strong load-bearing and lifting capacity, standard leaf spring suspension system and airbag suspension are optional.
