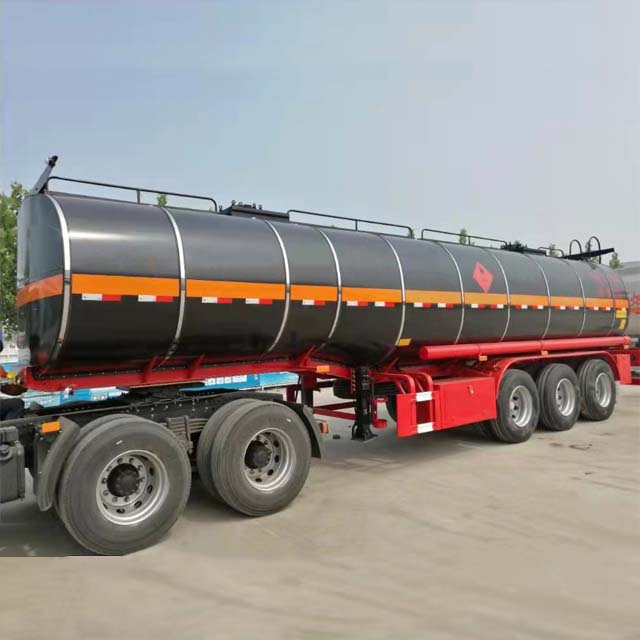

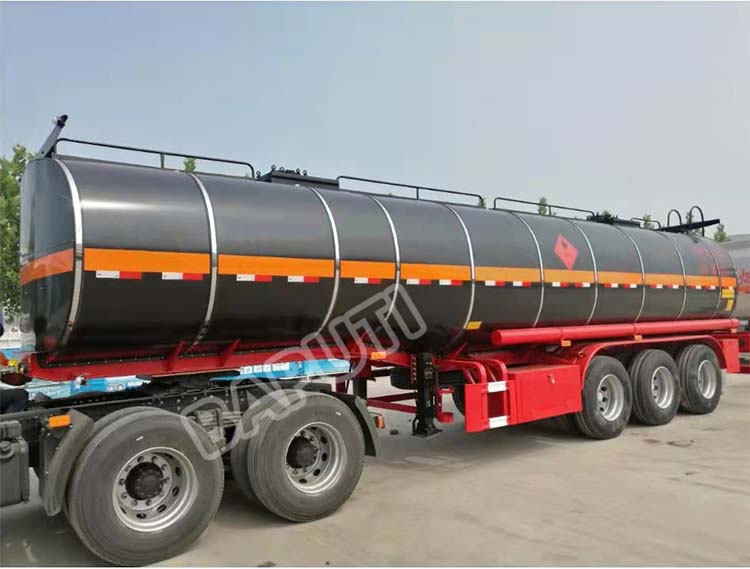

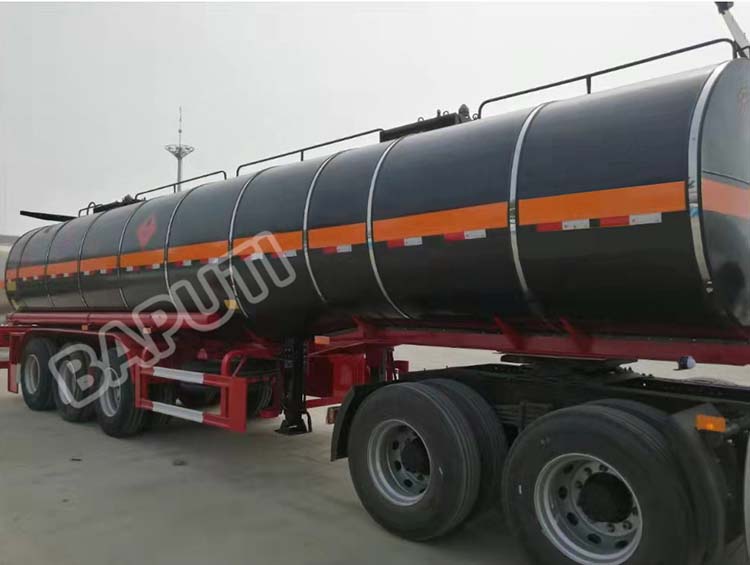

Bitumen Tank Trailer

Bitumen Tank Trailer is used for long, medium and short distance transportation of liquid asphalt or other heavy oil.

Tri Axle Bitumen Tank Trailer is also called heated bitumen tank trailer, heated bitumen transport, hot asphalt tanker, Insulation asphalt tanker, Liquid Asphalt tank, semi-trailer hot asphalt tanker.
Asphalt tanker can be designed and produced according to customer's requirement.

Specification:

Medium: bitumen,asphalt

Axles: 13/16ton axle, 3 pieces, L1, FUWA,BPW Brand

Suspension: Mechanical leaf spring suspension ,Airbag suspension

Tire 12R22.5 ,11R22.5, 315/80R22.5, 385/65R22.5,Size and brand optional

Landing gear: 28 Ton two speed, JOST or equivalent brand

Tank size: 45CBM

Tank body: 5mm carbon steel

Manhole: 500mm, 2pieces

Compartment: 1

Traction pin: 50mm/90mm

Heating system: 1.One layer of thermal insulation (Galvanized sheets, thickness is 0.8mm)

2.Pipe heating system :transfer the truck exhausts into the heating source.

3.Two pieces of Charcoal burner (The Charcoal burning by Coal)

Discharge Hole: 3" thickness rock wool insulation with 2mm thick Zinc Coated sheet cladding

Braking system: Dual line brake system,Double air chamber ,brake valve,40L air tanks ;ABS optional

Electrical: LED light , 7 ways ,24V

Painting: Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting

Accessory: Tool box, spare wheel bracket,8kg*2 pieces
