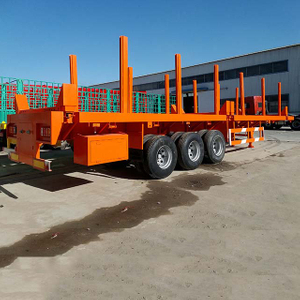

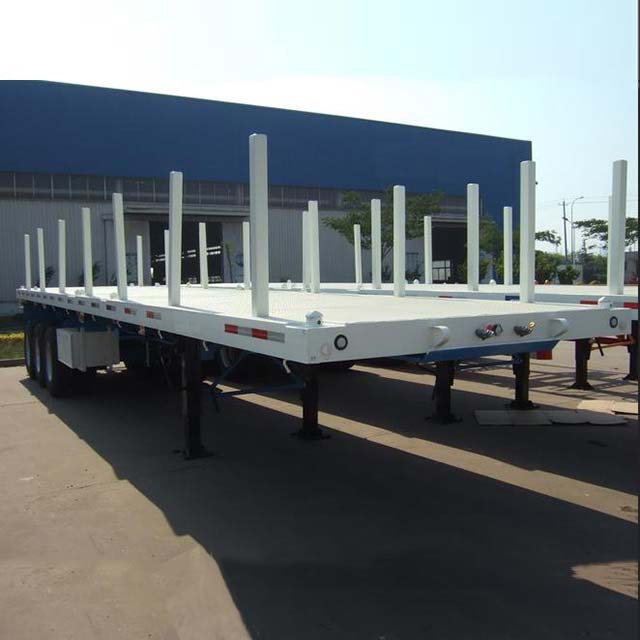

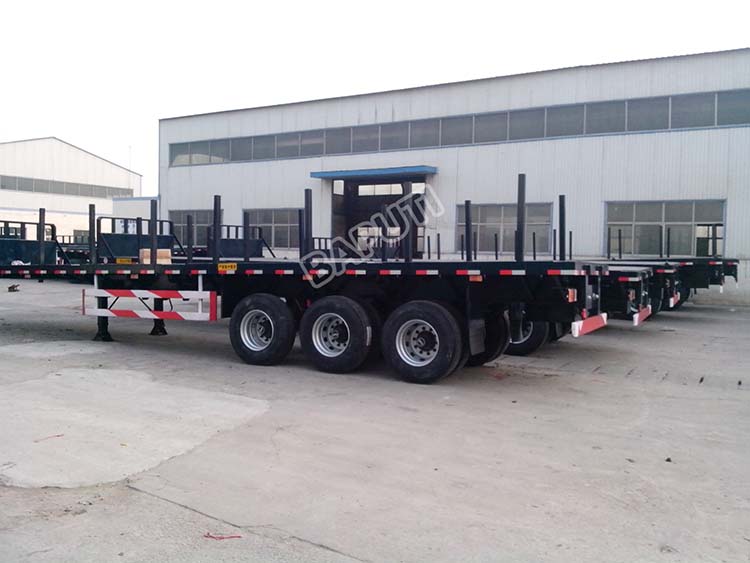

Tri Axle 40ton Wood Transporting Trailer

Wood transporting trailer is also called logging trailer/timber trailer, and it is used for the log, timber and wood transportation.

Flatbed semi trailer with stakes meets all requirements of the log/timber/wood industry.

For the log trailers Chassis, we adopt Q345B carbon or T700 high strength steel, and we adopt world famous brand of parts, like JOST, WABCO braking valve, BPW/FUWA axle etc.,which made the whole trailer quality strong quality.

The tires can be equipped with single or twin tires.

We can customize the logging trailer/timber trailers according to customer's need.

Specification:

Tare Weight : 7.5ton

Loading Capacity: 50ton

Axle : 13ton , 3 pieces, FUWA/BPW/L1brand

Suspension: mechanical leaf spring Suspension,10/10/10 pieces per axles

King pin :2.0" or 3.5"  or JOST brand

Tire: Triangle Brand , 12R22.5, 12 pieces

Outside Dimensions(L*W*H): 12500x2500x2770

Twist lock: 12 pieces,according to the buyer's requirement.

The material of Main beam: The height of the beam is 500mm,upper plate is 14mm,down plate is 16mm,middle plate is 8mm.Side beam is 16#Channel steel.

Platform plate : 3mm diamond plate

Brake Chamber: Two double and two single chambers.

ABS system : Optional

Tire carrier: 1 piece

Electrical Voltage: 24V

Electrical Receptacle: 7ways (7 wire harness)

Side marker lamp: Orange(4pcs each side)(LED Brand)

Rear lamp: Red (LED Brand)

Turn signal lamp: Orange(LED Brand)

Painting: According to the buys' requirement.

Tools box: 1 piece

Logging trailer design drawing:
