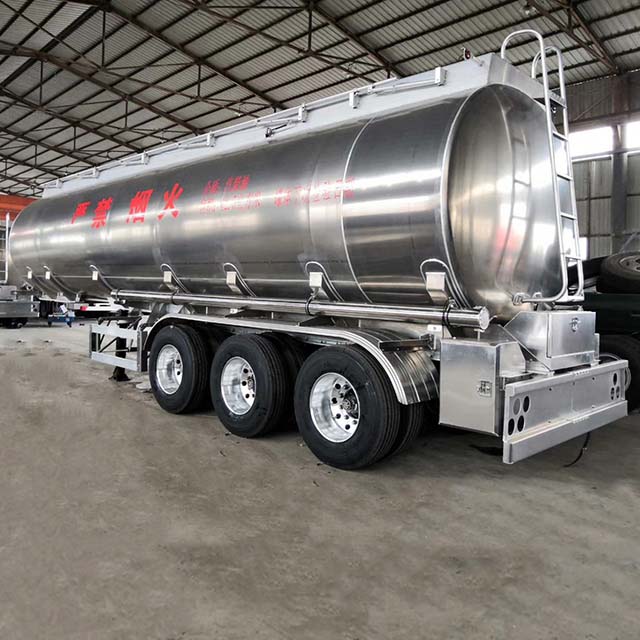

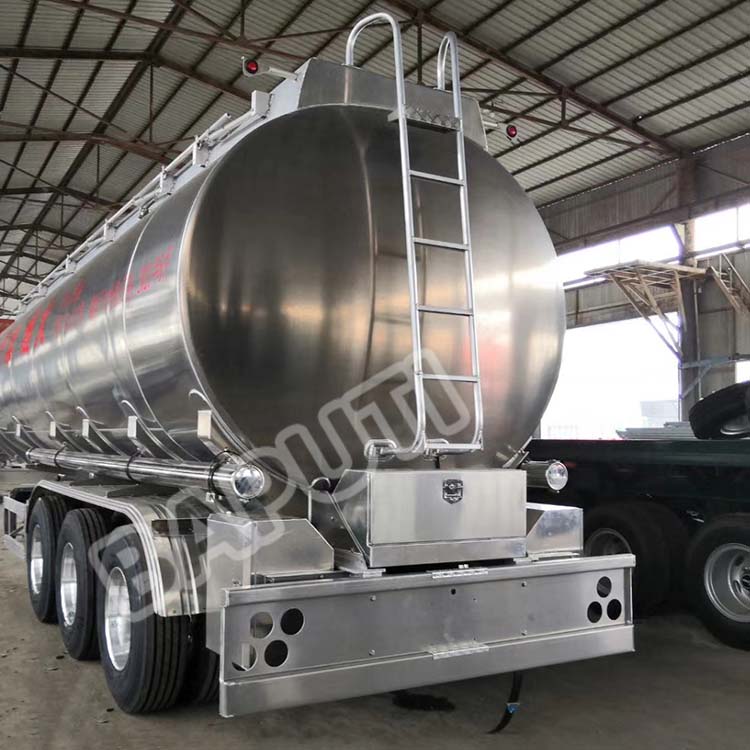

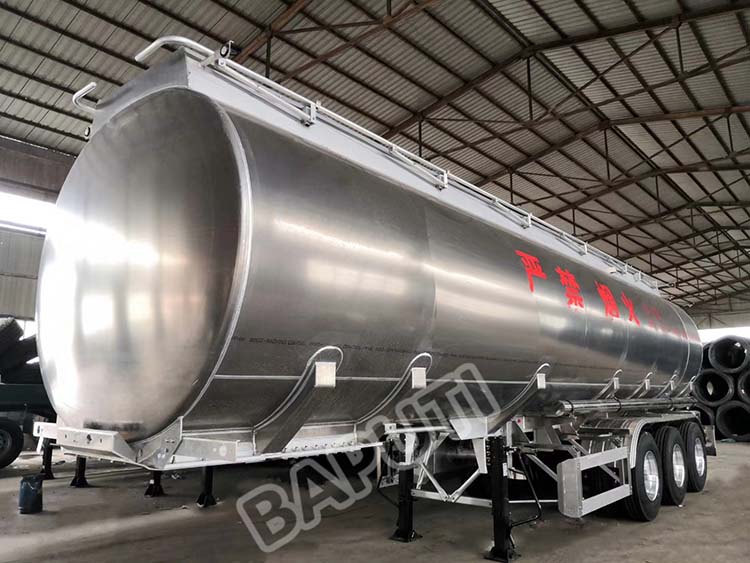

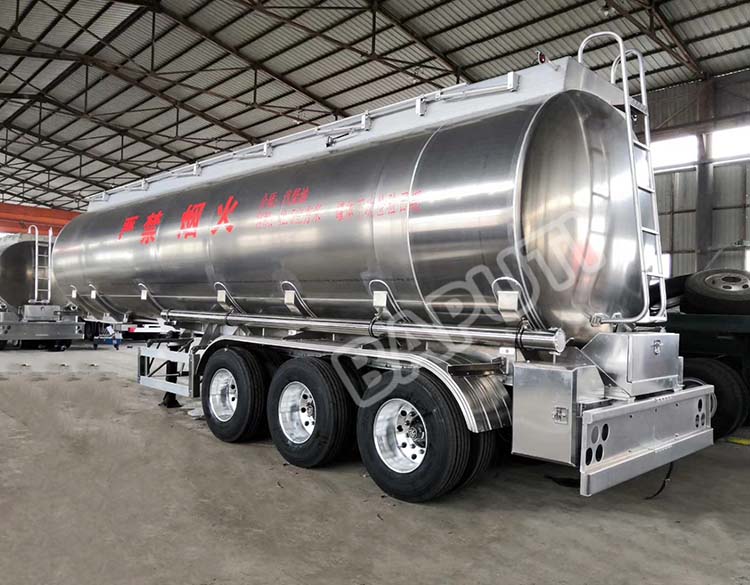

Tri Axle Aluminum Tanker Trailer

BAPUTI tri axle 45000 Liters aluminum tanker trailer adopts aluminum alloy 5454,which is a typical high strength wear-resistant.

It is mainly used to transport fuel,petrol, oil, diesel, gasoline, petroleum, ethanol and other liquid substances.
The tanker trailer tank size can range from 30000Liters to 60000Liters.

The tank trailer compartment can be divided into 1~9 compartments according to customer’s need.

The aluminum tanker trailer suspension can be mechanical leaf spring suspension or airbag suspension, axles can be 3 and 4 axles, and tires can be single tire 385/65R22.5 or double tires 12R22.5 or 315/80R22.5 etc..

All our exported tri axle aluminum tankers for sale can be designed and customized for customer according to customer’s requirements.

Specification:

Outer size(estimated): 12000*2500*3950mm

For transporting: Fuel, JET A-1, oil, diesel,petroleum, gasoline ,ethanol,liquid food

Tank size: 45000Liters

Estimated weight: 7 ton

Main beam:  Aluminium

Tank’s Front/Rear end plate:  Aluminium alloy,7mm thickness

Tank body : Aluminium alloy,6mm thickness

Compartment : according to customer need

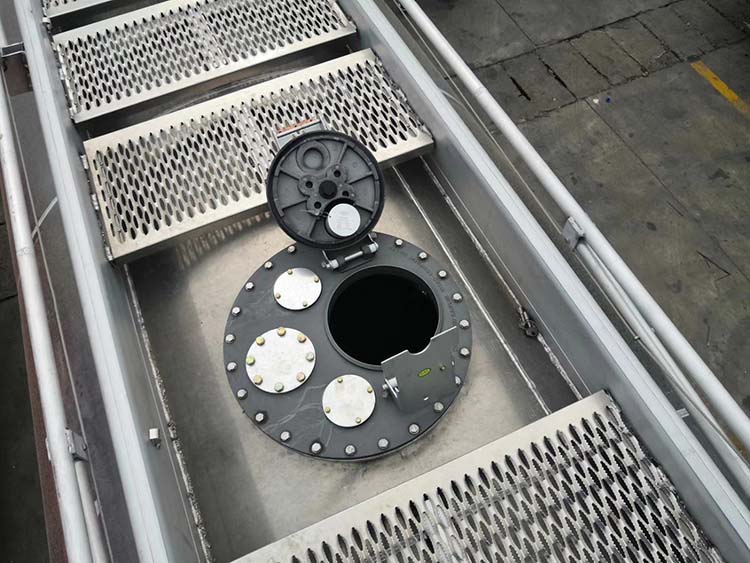

Manhole cover:  Aluminium alloy manhole

Discharging valve:  3” API discharge valve

Axle : 14ton axle, 3 pieces

Tire:  12 pieces of 315/80R22.5,double tires

Suspension : Airbag suspension,front axle can be lifted up(leaf spring suspension optional)

Kin pin: 50mm/90mm can be adjustable

Brake system: Standard double brake chamber

Landing gear:  28ton landing legs

Spare tire bracket: 2 pieces

Light:  LED light

Voltage:  24v

Receptacle:  7 ways(7wire harness)

Tool box:  1 piece

Painting and logo: According to customer’s requirement

Product advantages:

1. Advanced design: Finite element analysis method is adopted for the structure of the tank body and anti-wave plate, and the stress analysis model under all working conditions is established, and the lightweight design makes the strength and stiffness of the tank body better when the tank body is lighter;

2. Anti-shock structure: The dish-shaped structure wave-proof board in the tank can effectively scatter shock waves around, reduce the local stress of the wave-proof board, and protect the tank body. According to the medium and road conditions, the anti-wave board adopts the method of dense and dense arrangement, and the force of the tank is more uniform;

3. Reinforcement ring structure: The external reinforcement structure of the stainless steel tank is unique in China; the full-bearing frame, the tank body bears most of the load, the vehicle weight is lighter, the tank body is not easily deformed, more economical and safer.

4. Professional production: advanced 13-meter automatic panel TIG welding machine, PLC programmable control technology, one-time canning forming process: reducing welding seams, high strength, smooth appearance, and stable vehicle performance;

5. Safety and environmental protection: a series of safety devices such as explosion-proof manhole, emergency cut-off bottom valve (subsea valve), breathing valve, tank top coaming, sealing wire harness, oil and gas recovery, etc., prevent rollover, collision, fire resistance, and improve loading efficiency at the same time. Safe and environmentally friendly.

Features

1.Better material selection:

The tank material is made of high-quality aluminum alloy sheet, especially the special type of aluminum alloy sheet developed in cooperation with domestic brand aluminum alloy manufacturers, which can be used to manufacture aluminum alloy thermal insulation tankers and pressure tankers. A higher-grade medium (such as methanol, etc.) is required.

2.Professional setting:

The tank body panel adopts longitudinal tailoring and 13m large tailor-welding equipment, which can minimize the number of tailor-welded seams. The tank body is formed by a 13m canning equipment, which changes the traditional tank car forming mode, and the overall straightness of the tank body is better. The tank body is welded with special tank body tooling fixtures, and is welded with an automatic protection welding machine. The application of special equipment can more effectively ensure the overall quality of the tank body.

3.Complete safety devices, high safety:

1). Explosion-proof device: The oil tanker adopts explosion-proof manhole, which can avoid a large amount of leakage of the medium in the tank once the vehicle rolls over; it can also release the gas in the tank in an emergency when the tanker has an accident or fire, effectively preventing the explosion of the tanker. . The chemical vehicle is equipped with a large-displacement safety valve, which can effectively prevent explosion accidents.

2. Emergency cut-off bottom valve (subsea valve): When the discharge pipeline is hit, the emergency cut-off valve can be disconnected from the shear groove to prevent a large amount of medium leakage in the tank.

3. Breathing valve: The breathing valve has the functions of anti-overflow, anti-rollover and fire resistance. The rollover of the tank will not cause medium leakage.

4. Tank top protection device: The solid hoarding protection structure can protect the tank top accessories from being hit even if the vehicle rolls over.

5. Electrical system: the integrated wiring harness is adopted,

and the connectors connected to the lamps are waterproof connectors, which has higher overall safety.

The BAPUTI aluminum tanker semi-trailer has a unique and beautiful appearance, and the structural parts have undergone sandblasting pretreatment process; the tank body is welded with a special tank body tooling fixture, which is welded with an automatic protection welding machine; the whole vehicle is reasonably matched, reliable in performance, and cost-effective High quality and stable quality, which can meet various different needs.
