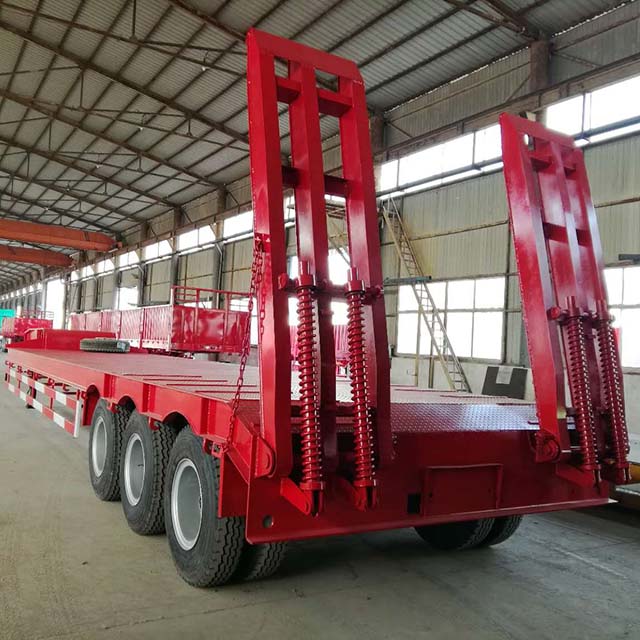

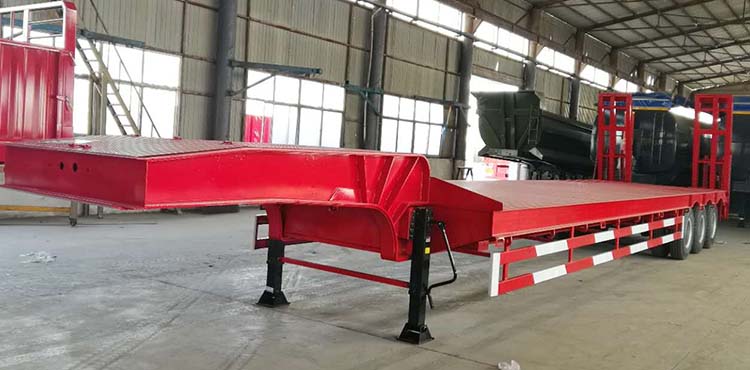

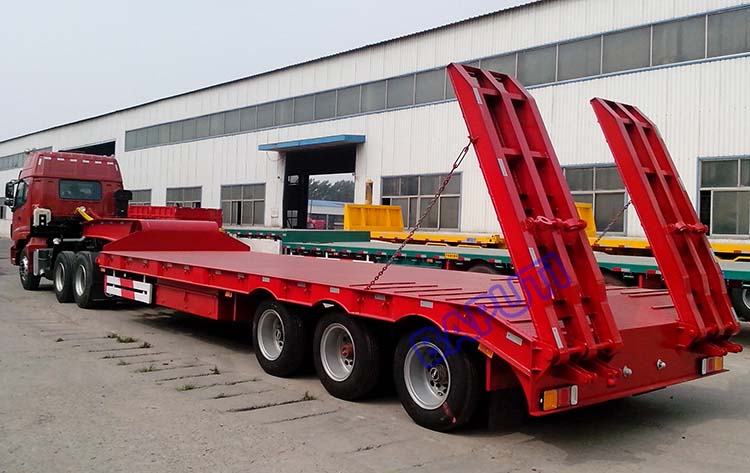

Tri Axle Low Loaders for Sale

Tri Axle Low Loaders for Sale is usually used to transport heavy vehicles ,rail vehicles, mining machines, forestry machines, agricultural machines (such as excavators, bulldozers, loaders, road pavers, cranes, etc.) and other heavy loads, the lower the center of gravity, the better the stability and safety, the better the ability to transport super high loads and pass overhead obstacles.

According to the tonnage, 30ton~180ton load capacity can be selected. The size of the cargo working platform can be customized according to customer needs.

Video of latest exported 3 axle low loader trailer:

Specification:

Loading capacity: 40~100ton

Size:  13000~16000x3000x2980mm

Chassis (I beam)

Ladder :Mechanical ladder , Width 700mm

Board height: 1300mm (from the top of floor to the ground )

Floor :Carbon steel Q235, Thickness 5mm, Checkered plate

Axle:13/16ton axle, 3 pieces,BPW/FUWA/L1

Tire : Triangle 11.00R20, 12pcs

Suspension:  Mechanical

Spring leaf:  Leaf width 90mm width, 16mm thickness,10 layers

King pin : 2 inch JOST

Brake system:  Air tank  45L air tanks

Brake chamber: 4double spring brake chamber

Landing gear: JOST , A300c two speed

Spare tire carrier:  1

Light : LED light

Voltage :  24v

Receptacle: 7 ways(7wire harness)and quick change type

Tool box : One piece

Painting:  Polyurethane paint&anti-rust primer&sand blasting

Tools for trailer:  Head wrench ;spare wheel crank ;

Features of BAPUTI Tri axle low loader trailers:

1. Frame: The longitudinal beam made of hot-rolled section steel or welded manganese steel is welded with the through beam and section steel components to form a frame structure. Reasonable structure, balanced overall strength and stiffness, high bearing capacity, good elasticity without permanent deformation, light weight and large load capacity of the whole vehicle, the main beam is designed with equal section to achieve the best bearing effect.

2. Axles: Imported or domestic high-quality brand axles are selected, and ABS anti-lock braking systems of well-known brands at home and abroad are selected to improve the driving safety of the vehicle.

3. Suspension system: It adopts a unique new type of suspension system with high strength and strong impact resistance; the patented tie-rod fixing structure ensures that it will not loosen during frequent bumpy operation, effectively reducing tire wear and prolonging service life. Suspension and brake pads are thickened, and the hanging ribs are lengthened, which can effectively prevent cracking and welding. The brake valve uses the brand WABCO. The wires are waterproof wires. Applicable to all road conditions in Africa.

4. Toolbox: Waterproof, oversized detachable toolbox.

5. Braking system: a safe and reliable dual-circuit air-cut brake is used, a quick release valve is installed in the system, and the sub-pump is used to quickly return to the position when braking.

6. Sophisticated craftsmanship: The main parts of the vehicle are processed with advanced equipment, and the longitudinal beams are welded by a fully automatic tracking submerged arc welding machine imported from the United States; the vehicle parts are all treated by shot peening, which greatly enhances the adhesion of the paint, and the assembly parts It adopts the process of painting first and then assembling.

7. Spray painting: electrophoresis primer + powder spray: This process is based on electrophoresis, through corona discharge, the topcoat powder is evenly attached to the body, and then melted at high temperature to form the topcoat. Its advantages just make up for the lack of spray paint.
