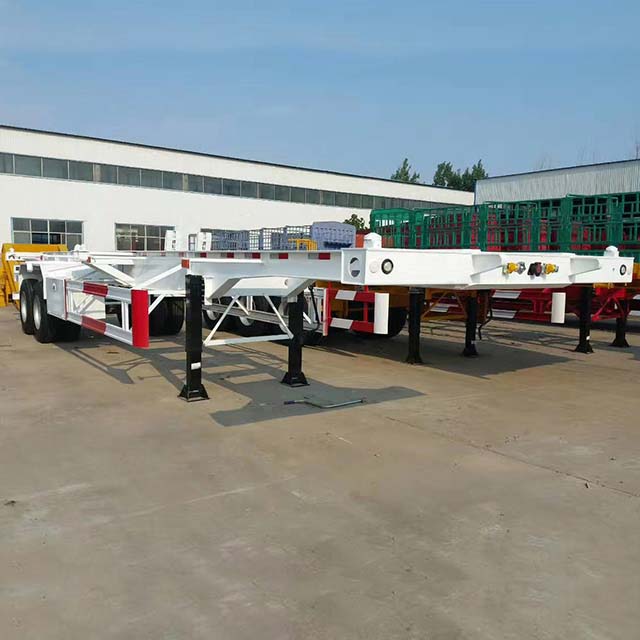

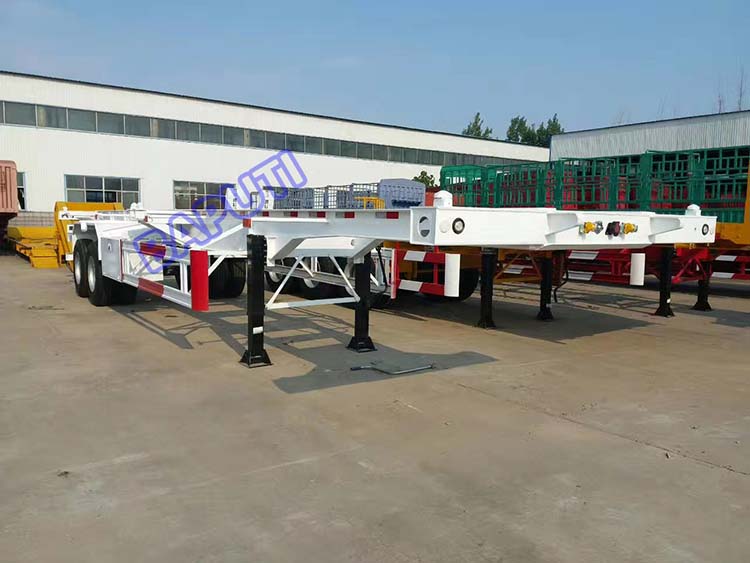

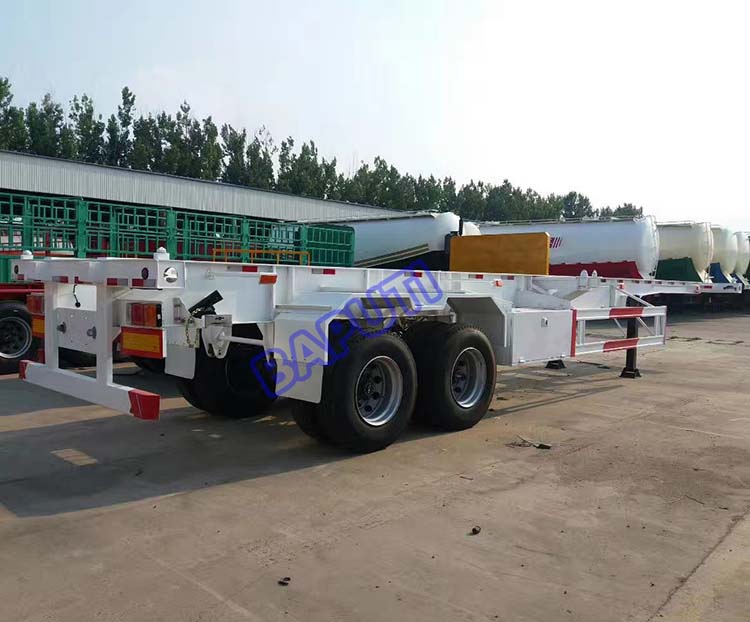

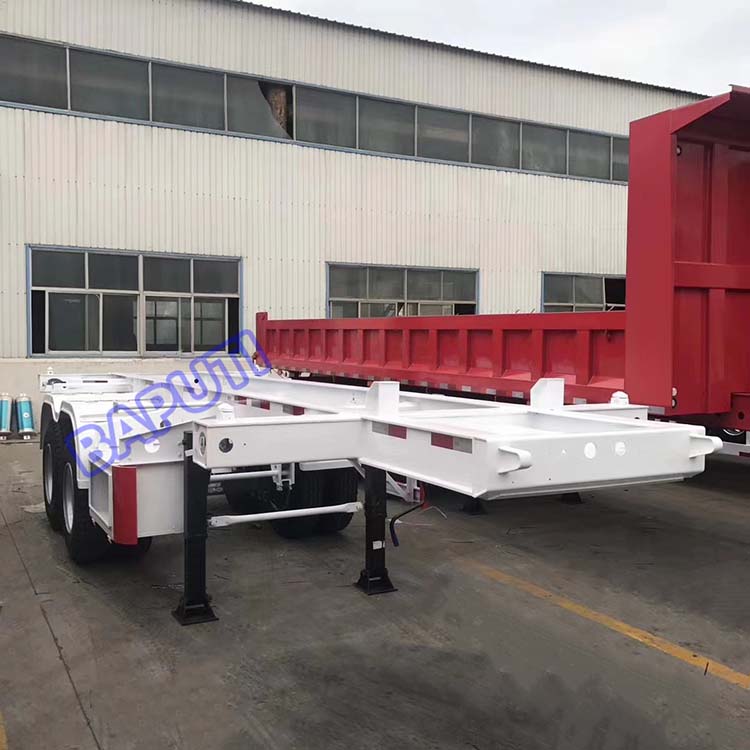

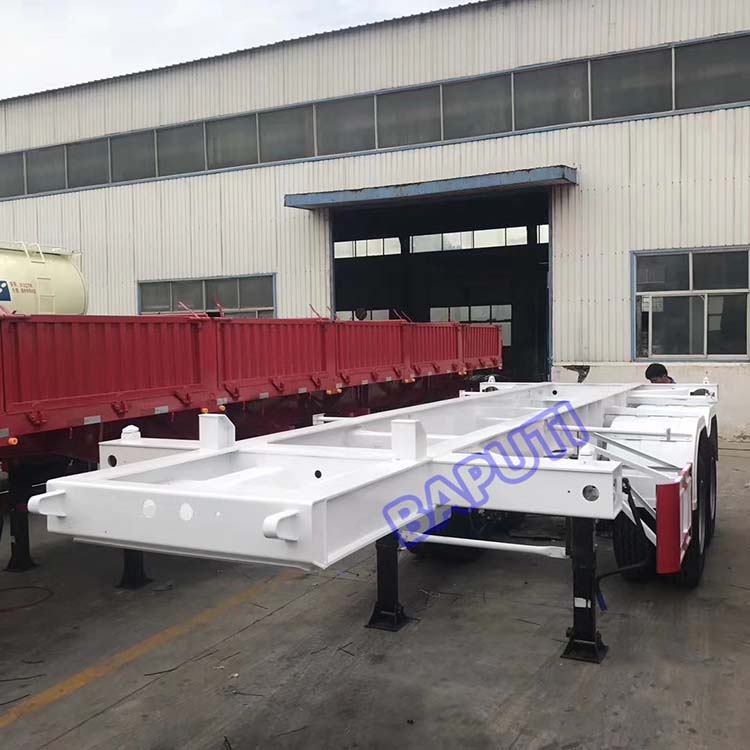

2 Axle 20ft Skeleton Container Semi Trailer for Sale

The 20ft Skeleton Container Semi Trailer is a specialized semi-trailer for transporting container. The skeleton trailer choose Q345B carbon or T700 high strength steel, and we adopt world famous brand of parts, like JOST, WABCO braking valve, BPW/FUWA axle etc.,which made the whole trailer quality strong quality.

Except 20ft skeleton semi trailer, we also produce 40ft, 45ft, 48ft,52ft skeleton container semi trailers, with 2 axle, 3 axle, 4 axles.

We can also customize the container chassis according to customer’s need.

Specification:

Overall dimension: 7260x2500x1700mm

Container twist lock: 4 pieces

Loading weight: 35000kg

Main beam : Carbon steel Q345B.The height 500 mm, upper plate 14mm,down plate 16mm,middle plate 8mm.

Side beam: 16mm channel steel

Traction pin: 2” (50mm) or 3.5’’(90mm) optional

Land gear: Standard 28ton

Axle: 13ton * 2 axle Fuwa brand

Spring leaf: 90mm*13mm*10 pieces

Suspension: Mechanical suspension (Airbag suspension optional)

Tire: 12R22.5, 8 pieces

Valve: WABCO RE 6 relay valve

Brake Chamber: T30/30+T30 Spring brake chamber

Tool box: 1 piece

Spare wheel carrier: 2 pieces

Marker lamp: LED type

Voltage: 24V

Receptacle: 7ways (7 wire harness)

Painting:  Complete  Chassis  sand  blasting  to  clean  rust,  1  coat  of  anti-corrosive prime, 2 coats of final paint
