2 Axle 30 Ton Tipper Semi Trailer

BAPUTI design and produce strong structure 2 axle 30 ton tipper semi trailer, with loading capacity ranging from 30ton to 80ton,mainly transporting sand,aggregate,gravel, grain, coal and other goods, widely used in sandstone plant, construction site and mine site. BAPUTI tipper semi trailer suitable for short-distance transportation in mining areas and medium and long-distance road transportation, with stronger torsion resistance, off-road performance and durability.

For the tipper trailer box, we adopt high strength steel to make it durable when load the sand or small stones or rocks, especially under the off road condition.

Tipping trailer box dimensions, shape and box plate thickness all can be customized by different cargo needs.

We cooperate with high quality axles, suspensions, brake system and hydraulic cylinders.

BPW, FUWA worldwide best axles work, WABCO brake valve, Strong quality springs and suspension, reliable hydraulic HYVA cylinder,specialized for tipping trailers.

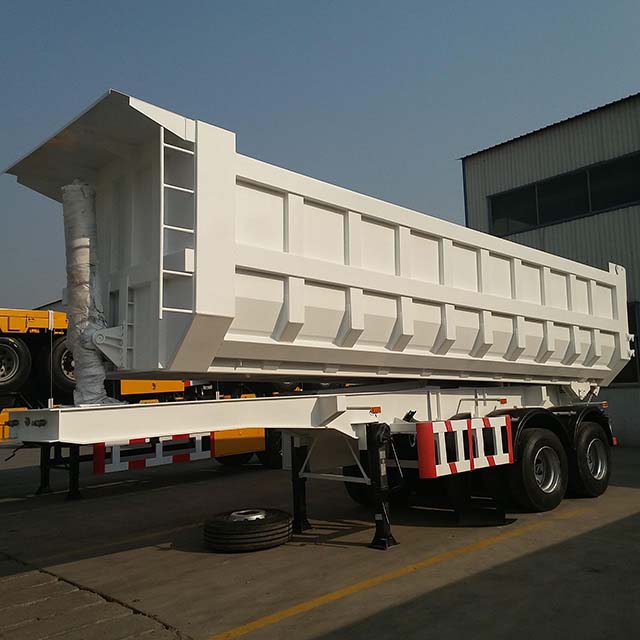

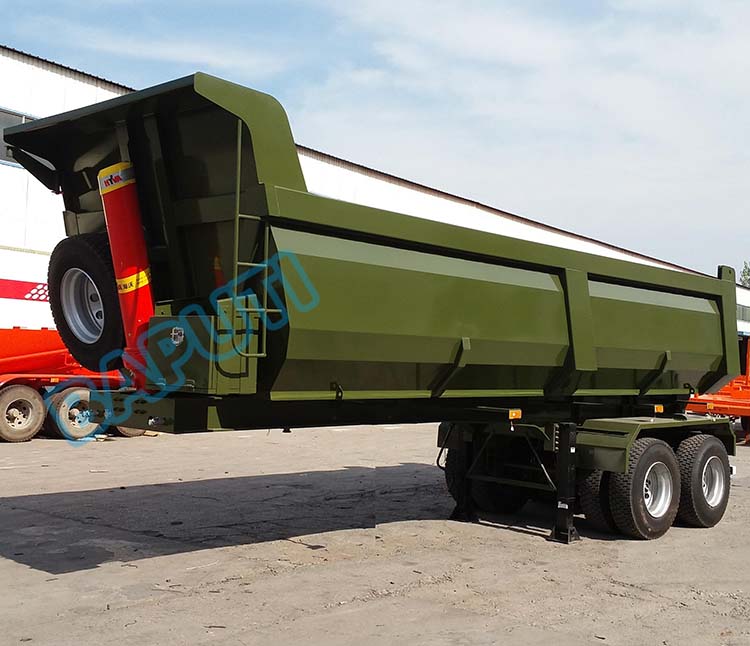

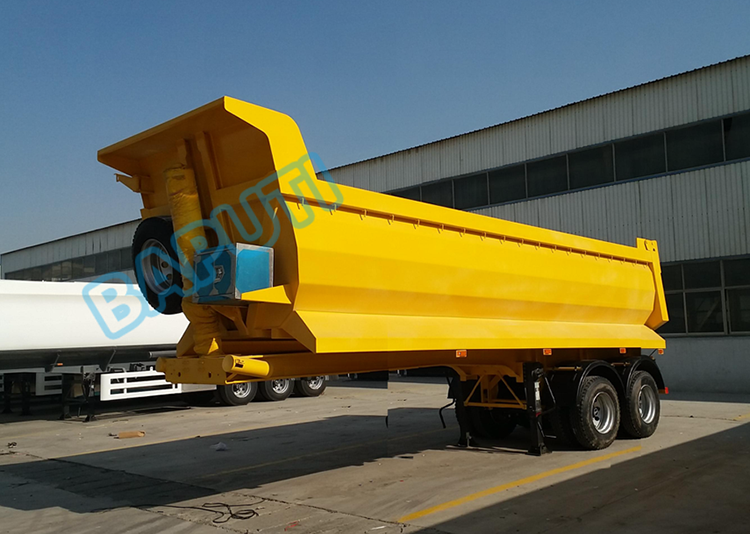

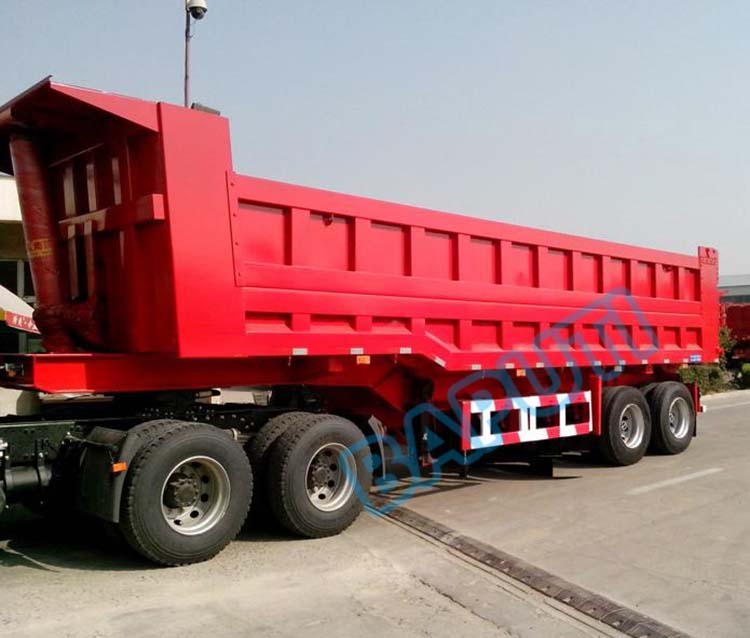

The kinds of 2 axle tipper semi trailers pictures as follows:

Specification of 2 axle 30 ton tipper semi trailer:

Loading capacity:30T

Size :9000x2500x3500mm

Chassis (I beam)

Top flange plate material and thickness: Q345B  14mm

Bottom flange plate material and thickness: Q345B  16mm

Middle flange plate material:  Q345B, Thickness  10mm,Height 500mm

Box Thickness : 6mm, Height  1200mm, Material  T700

Floor  :Material  T700, Thickness  8mm

Cylinder :  HYLW 196-6500

Axle : FUWA axle, 13ton, 2 pieces

Tire : Triangle brand , 12.00R20, 8 pieces

Suspension:  Mechanical suspension

Spring leaf : Leaf width  90mm, Leaf thickness 16mm,Layer/set  10 Layer

King pin : 2  inch

Brake system:  Air tank  45L air tanks

Brake chamber: 4 double spring brake chamber

Landing gear: JOST ,A300 two speed

Spare tire carrier :            1

Light :            LED light

Voltage:             24v

Receptacle : 7 ways(7wire harness)and quick change type

Tool box : One piece

Painting:  Polyurethane paint&anti-rust primer&sand blasting

Tools for trailer:  Head wrench ;spare wheel crank

Features of 30 ton tipper semi trailer:

1. Enlarge the U-shaped section carriage, the center of gravity is about 200mm lower, and the volume is larger.

2. The interior of the tipper carriage is smooth without dead ends, making unloading cleaner, more efficient and safer.

3. Dual-air braking system: Applying well-known imported braking systems such as WABCO, with reasonable arrangement, fast and safe braking, and lower failure rate

4. Circuit system: 12-24V multi-voltage change, LED lamps, can be matched with various brands of tractor trucks, and the driving safety is higher.

5. The main structure of the tipper trailer adopts high-strength structural steel, the whole vehicle is light in weight and heavy in load, and the main beam adopts strength analysis and advanced design concept to achieve the best bearing effect.

6.The internationally renowned hydraulic system is adopted, which saves time and effort, is safe and reliable, and improves the efficiency of cargo transportation and unloading.At the front of the tipper trailer is equipped with a multi-stage oil cylinder, which can lift the cargo box to a certain angle. The hydraulic oil cylinder is simple and reliable to install and easy to maintain. With control functions such as lifting, intermediate stop, and lowering, the loaded materials can be quickly unloaded from the rear of the tipper trailer.

7. The tipper semi trailer has strong load-bearing and lifting capacity, standard leaf spring suspension system and airbag suspension are optional.
