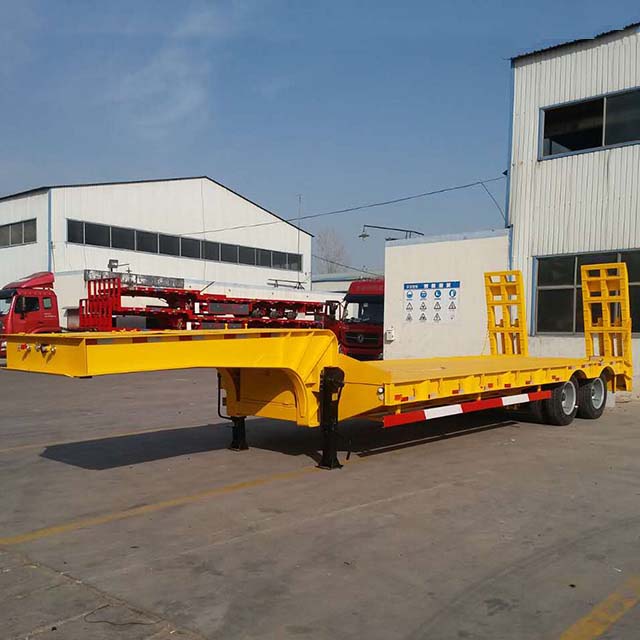

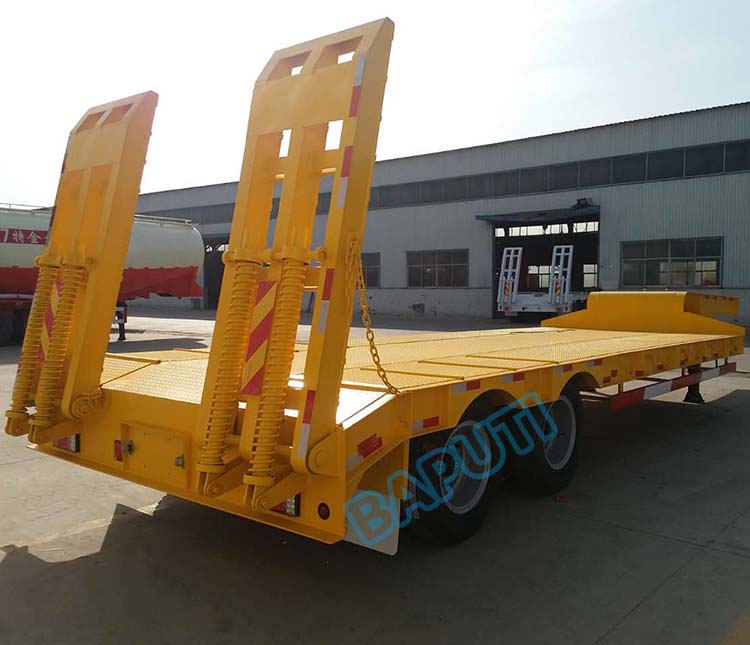

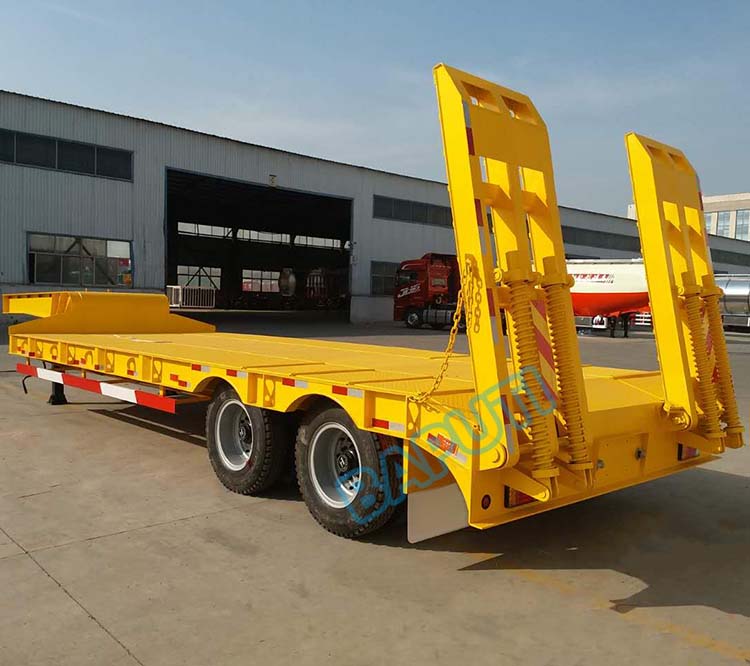

2 Axle 40 ton Low Bed Trailer for Sale

Low bed trailers are usually used to transport heavy vehicles (such as tractors, buses, special vehicles, etc.), rail vehicles, mining machines, forestry machines, agricultural machines (such as excavators, bulldozers, loaders, road pavers, cranes, etc.) and other heavy loads, the lower the center of gravity, the better the stability and safety, the better the ability to transport super high loads and pass overhead obstacles.

According to the tonnage, 30ton~180ton load capacity can be selected. The size of the cargo working platform can be customized according to customer needs.

2 Axle 40ton low bed Semi Trailer Specification:

Total size: 13000*3000*1650mm

Working size(Lx W x H)(mm) : 9000*3000*1300mm

Curb Weight(KG): 7000

Loading Weight(KG): 40000

Departure Angle: 16

Axle Brand: 13TON Axle，2 pieces,  FUWA Brand

Suspension system :Mechanical Leaf spring suspension

Steel Spring:  10/10/10 leaf spring suspension

The material of Main beam :The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 10 mm.

Platform plate :5mm Checkered plate

Tire Type and quantity: 12R22.5 , 12 pieces

Ladder:  With Ladder

Traction Pin: 90mm/50mm

Spare Wheel Bracket: 1 piece

Tool Box : 1 Standard

Landing Gear:  Standard FUWA 28T

Brake system: Dual Line braking system,

Brake air chamber: Two double and two single chamber

Electrical system: 1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector, side lamp etc.

One set 6-core standard Cable.

Features of 40ton Lowbed Trailer For sale:

1. Frame: The longitudinal beam made of hot-rolled section steel or welded manganese steel is welded with the through beam and section steel components to form a frame structure. Reasonable structure, balanced overall strength and stiffness, high bearing capacity, good elasticity without permanent deformation, light weight and large load capacity of the whole vehicle, the main beam is designed with equal section to achieve the best bearing effect.

2. Axles: Imported or domestic high-quality brand axles are selected, and ABS anti-lock braking systems of well-known brands at home and abroad are selected to improve the driving safety of the vehicle.

3. Suspension system: It adopts a unique new type of suspension system with high strength and strong impact resistance; the patented tie-rod fixing structure ensures that it will not loosen during frequent bumpy operation, effectively reducing tire wear and prolonging service life. Suspension and brake pads are thickened, and the hanging ribs are lengthened, which can effectively prevent cracking and welding. The brake valve uses the brand WABCO. The wires are waterproof wires. Applicable to all road conditions in Africa.

4. Toolbox: Waterproof, oversized detachable toolbox.

5. Braking system: a safe and reliable dual-circuit air-cut brake is used, a quick release valve is installed in the system, and the sub-pump is used to quickly return to the position when braking.

6. Sophisticated craftsmanship: The main parts of the vehicle are processed with advanced equipment, and the longitudinal beams are welded by a fully automatic tracking submerged arc welding machine imported from the United States; the vehicle parts are all treated by shot peening, which greatly enhances the adhesion of the paint, and the assembly parts It adopts the process of painting first and then assembling.

7. Spray painting: electrophoresis primer + powder spray: This process is based on electrophoresis, through corona discharge, the topcoat powder is evenly attached to the body, and then melted at high temperature to form the topcoat. Its advantages just make up for the lack of spray paint.
