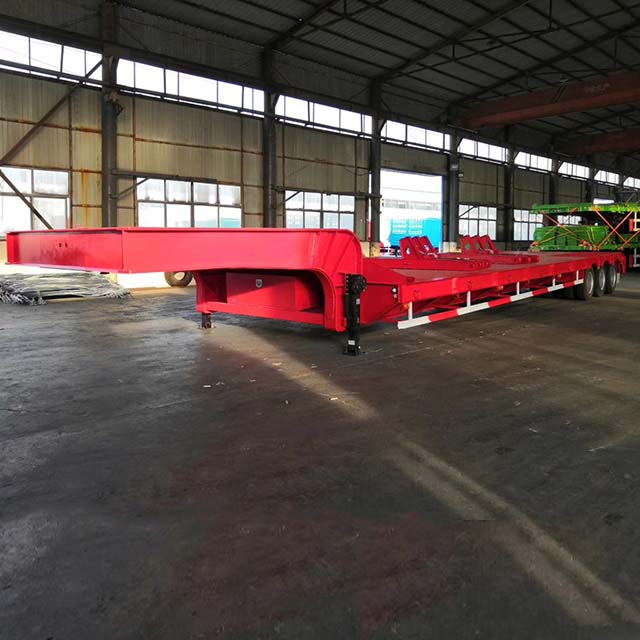

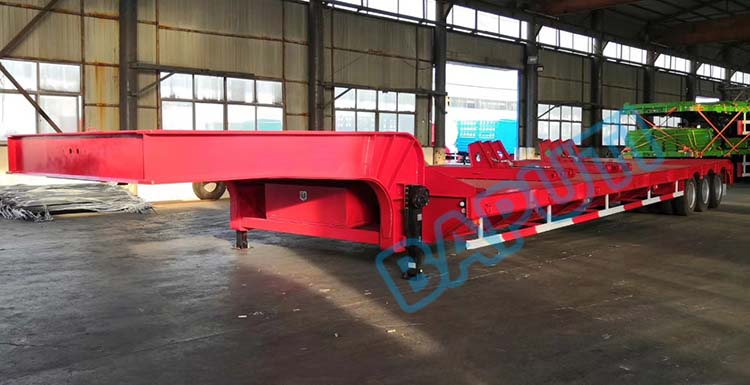

3 Line 6 Axle 100 ton Low Bed Trailer

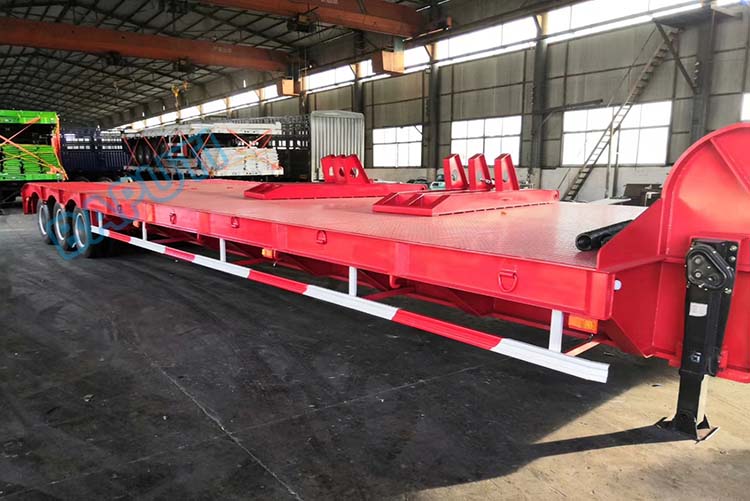

3 Line 6 Axle Lowboy Gooseneck Trailer normally is used to transport large construction machinery, such as excavators, rollers and cranes,and heavy cargo. Due to the low center of gravity of the lowbed transport, 100 ton trailer can transport huge cargo and avoid damage to the cargo. Low loader trailer transport is designed to solve the overload problem of large tonnage.

According to the tonnage, two-line four-axle, three-line six-axle, 4 line 8 axle, 5 line 10 axles, 6 line 12 axle suspension system can be selected. The size of the cargo working platform can be customized according to customer needs.

Video of 3 line 6 axle low bed trailer:

Specification of 3 line 6 axle 100ton low bed trailer :

Function: Big machine and cargo transport

Overall dimension: 18200*3000*1500 mm

Working plate size:  11000*2000mm*1050mm

Curb weight:  11000kgs

Loading weight: 100000kg

Main beam:  Carbon steel Q345B.The height 550 mm, upper plate 25mm,down plate 25mm,middle plate 16mm.

Side beam: 25mm channel steel

Traction pin :2” (50mm) or 3.5’’(90mm) optional

Land gear: Standard 28ton

3 line with 6 axles: Fuwa 13 ton * 6 axles

Suspension: Mechanical suspension

Tire :12R22.5,24 pieces

platform thickness :5mm Diamond plate

Valve: WABCO RE 6 relay valve

Tool box :1 unit  1m*0.5m*0.5m

Spare wheel carrier :2 units

Marker lamp: LED type

Voltage: 24V

Receptacle: 7ways (7 wire harness)

Painting:  Complete  Chassis  sand  blasting  to  clean  rust,  1  coat  of  anti-corrosive prime, 2 coats of final paint

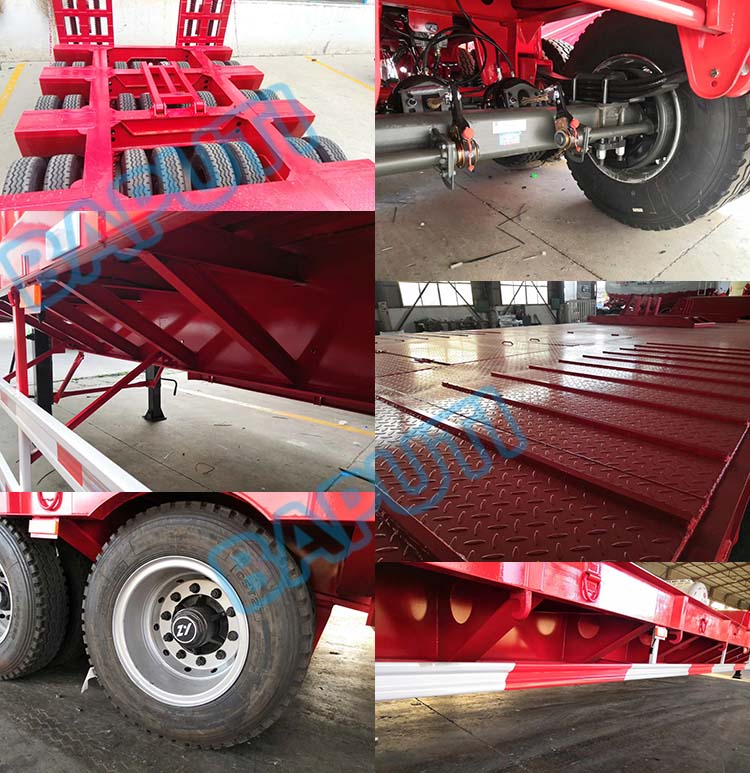

Features of 100ton 3 Line 6 Axle Lowboy Trailer:

1. Frame: The longitudinal beam made of hot-rolled section steel or welded manganese steel is welded with the through beam and section steel components to form a frame structure. Reasonable structure, balanced overall strength and stiffness, high bearing capacity, good elasticity without permanent deformation, light weight and large load capacity of the whole vehicle, the main beam is designed with equal section to achieve the best bearing effect.

2. Axles: Imported or domestic high-quality brand axles are selected, and ABS anti-lock braking systems of well-known brands at home and abroad are selected to improve the driving safety of the vehicle.

3. Suspension system: It adopts a unique new type of suspension system with high strength and strong impact resistance; the patented tie-rod fixing structure ensures that it will not loosen during frequent bumpy operation, effectively reducing tire wear and prolonging service life. Suspension and brake pads are thickened, and the hanging ribs are lengthened, which can effectively prevent cracking and welding. The brake valve uses the brand WABCO. The wires are waterproof wires. Applicable to all road conditions in Africa.

4. Toolbox: Waterproof, oversized detachable toolbox.

5. Braking system: a safe and reliable dual-circuit air-cut brake is used, a quick release valve is installed in the system, and the sub-pump is used to quickly return to the position when braking.

6. Sophisticated craftsmanship: The main parts of the vehicle are processed with advanced equipment, and the longitudinal beams are welded by a fully automatic tracking submerged arc welding machine imported from the United States; the vehicle parts are all treated by shot peening, which greatly enhances the adhesion of the paint, and the assembly parts It adopts the process of painting first and then assembling.

7. Spray painting: electrophoresis primer + powder spray: This process is based on electrophoresis, through corona discharge, the topcoat powder is evenly attached to the body, and then melted at high temperature to form the topcoat. Its advantages just make up for the lack of spray paint.
