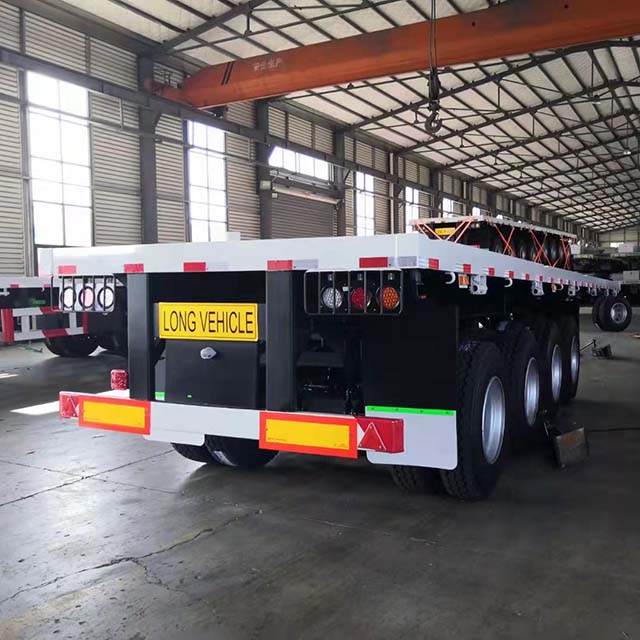

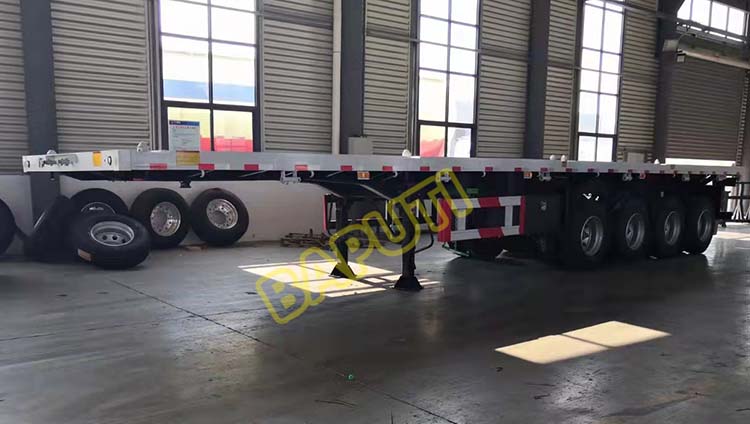

4 Axle 48 Ft Flatbed Trailer for Sale

BAPUTI 4 axle 40ft flatbed trailer with airbag suspension is the popular exported model in Africa, for its strong structure and heavy load capacity.

It is designed for carrying 40ft container, 20ft container and other dry bulk cargo.

The flatbed trailer is suitable for carrying loads more than 60 tons weight .

According to the length of the trailer, except 4 axle 40ft flatbed trailer , we can also offer 20ft, 45ft ,48ft ,52ft, with 2axles/3axles/4axles/5 axles.

Features of BAPUTI 48ft flatbed semi trailer:
1. Multi Support parts

12 or 8 sets of container twist locks for carrying one 40ft container or two 20ft containers.

Rope Euphroes and hooks help fasten cargo, suitable for multi cargo transporting.

2. Good Painting

Surfaces cleaned by shot blasting. One epoxy coating and acrylic finish coating.

Durable against rust, support longer good looking and service life.

3. Automatic welding

Submerged arc Automatic welding construction, Key point reinforces and purposeful welding avoid some parts easier lose welding according experience

support vehicle longer time working without repairing.

4. Quality Axles, suspensions and Brake system

BPW, FUWA worldwide best axles work with WABCO brake valve, more effectively brake for safety and save cost.

Strong quality springs and suspension, support longer service life, save maintainance cost.

Specification of 4 axle 48ft flatbed semi trailer for sale:

Tare weight: 7500kg

Size: 13500mm*2500mm*1500mm

Payload: 60ton

Main beam: Heavy duty and extra durability designed I beam, high tensile steel Q345, welded by automatic submerged-Arc processes.

Top flange 16mm,width140mm;Middle Flange 10mm height 500mm;bottom flange18mm,width 140mm

Side beam: 16# channel steel(Q235)

Floor: 3mm checkered plate

Axle: 4 axle FUWA brand 13T

Suspension: Mechanical leaf spring suspension. Airbag suspension is optional

Leaf spring: 10pcs*13mm*90mm

Tire: 12R22.5, 16pieces

Kingpin: 50mm/90mm

Landing gear: JOST or FUWA 28ton landing legs

Twist lock: 12 pieces

Braking system: WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks

ABS: Optional

Light :LED lights

Painting: Complete chassis sand blasting to clean rust ,1coat of anti-corrosive prime,2coats of final paint.

Accessories: One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light
