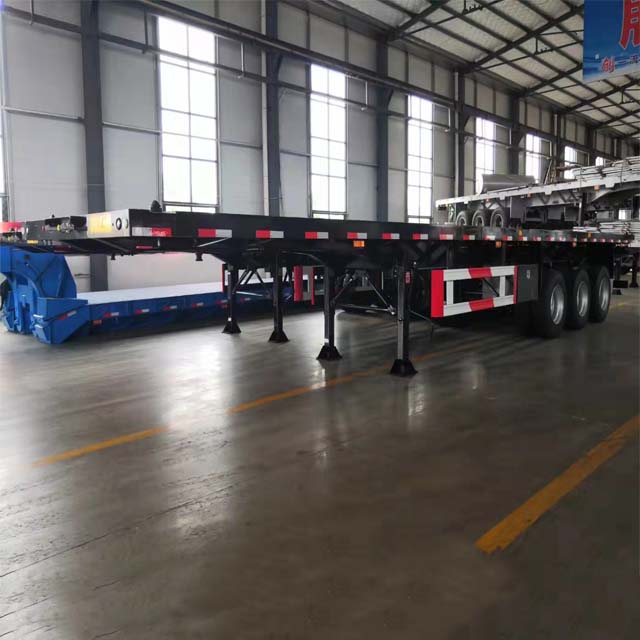

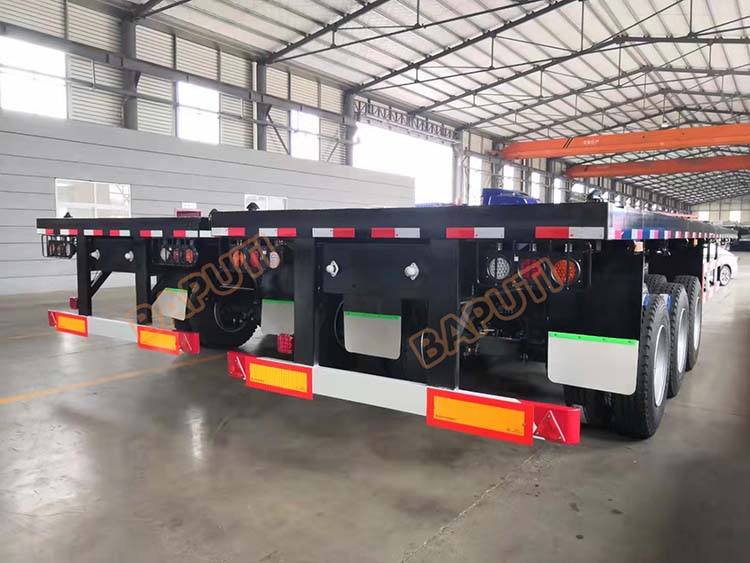

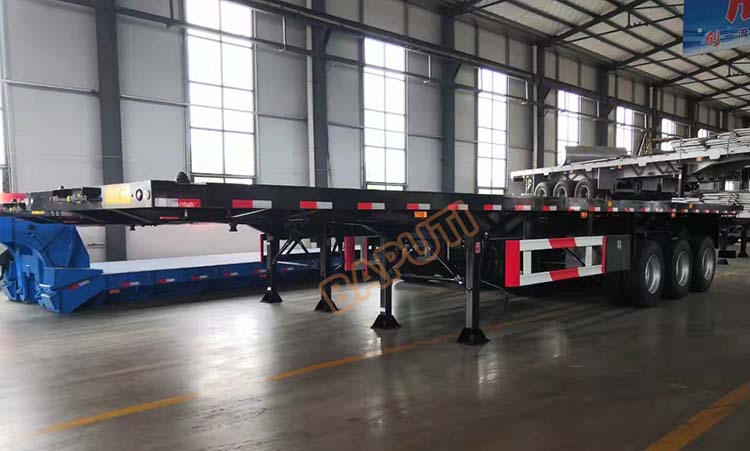

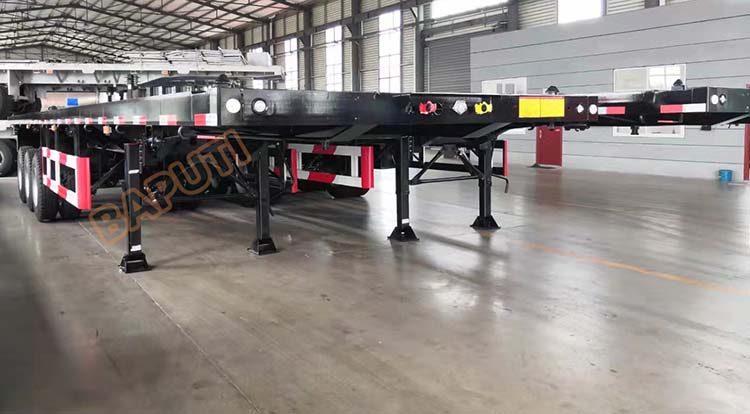

Triaxle Flat Bed Trailer for 40ft Container

Triaxle Flatbed Semi Trailer-40ft flatbed semi trailer is the most popular model.

It is designed for carrying 40ft container, 20ft container and other dry bulk cargo.

The flatbed trailer is suitable for carrying loads 40 ton~60 tons weight .

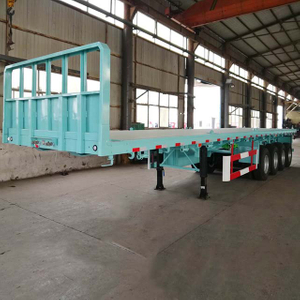

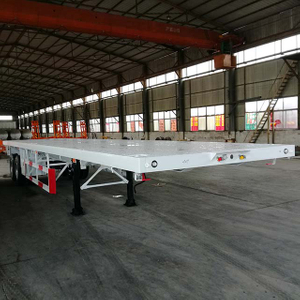

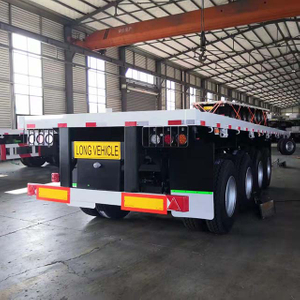

According to the length of the trailer, except 40ft flatbed trailer, we can also offer 20ft, 45ft ,48ft ,52ft, with 2axles/3axles/4axles.

Specification:

Tare weight: 7000kg

Size: 12500mm*2500mm*1500mm

Payload: 40Ton

Main beam: Heavy duty and extra durability designed I beam, high tensile steel Q345, welded by automatic submerged-Arc processes.

Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm

Side beam: 16# channel steel(Q235)

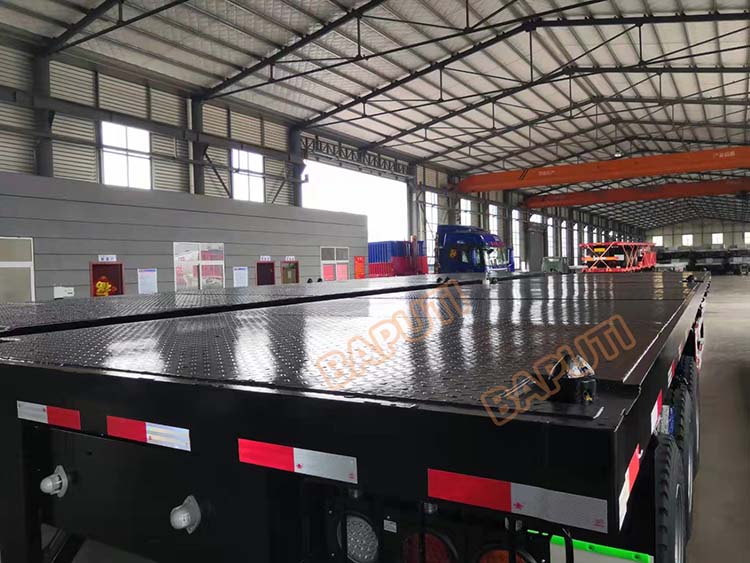

Floor: 3mm checkered plate

Axle: 3 axle FUWA brand 13T

Suspension: Mechanical leaf spring suspension. Airbag suspension is optional

Leaf spring: 10pcs*13mm*90mm

Tire :12R22.5, 12pieces

Kingpin: 50mm/90mm

Landing gear: JOST or FUWA 28ton landing legs

Twist lock :12 pieces

Braking system: WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks

ABS Optional

Light LED: 8 side lights and 2 rear lights 2 width lamp

Painting: Complete chassis sand blasting to clean rust ,1coat of anti-corrosive prime,2coats of final paint.

Accessories: One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light

Features of BAPUTI Tri axle 40ft flatbed semi trailer：1. Multi Support parts

12 or 8 sets of container twist locks for carrying one 40ft container or two 20ft containers.

Rope Euphroes and hooks help fasten cargo, suitable for multi cargo transporting.

2. Good Painting

Surfaces cleaned by shot blasting. One epoxy coating and acrylic finish coating.

Durable against rust, support longer good looking and service life.

3. Automatic welding

Submerged arc Automatic welding construction, Key point reinforces and purposeful welding avoid some parts easier lose welding according experience

support vehicle longer time working without repairing.

4. Quality Axles, suspensions and Brake system

BPW, FUWA worldwide best axles work with WABCO brake valve, more effectively brake for safety and save cost.

Strong quality springs and suspension, support longer service life, save maintenance cost.
