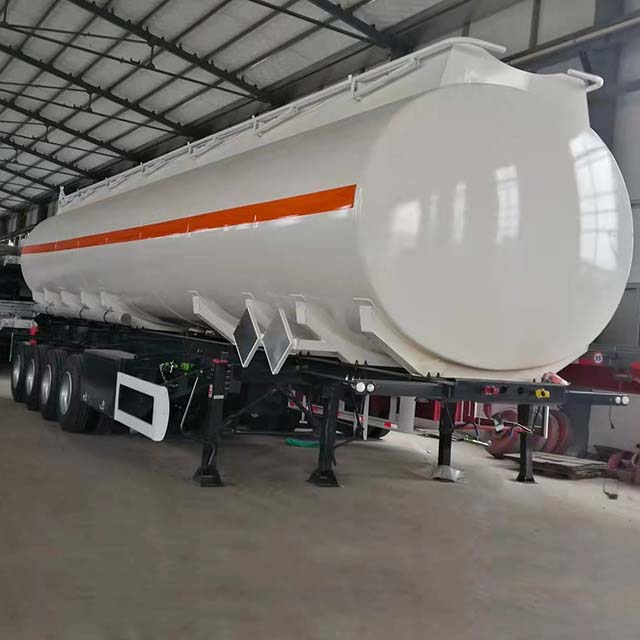

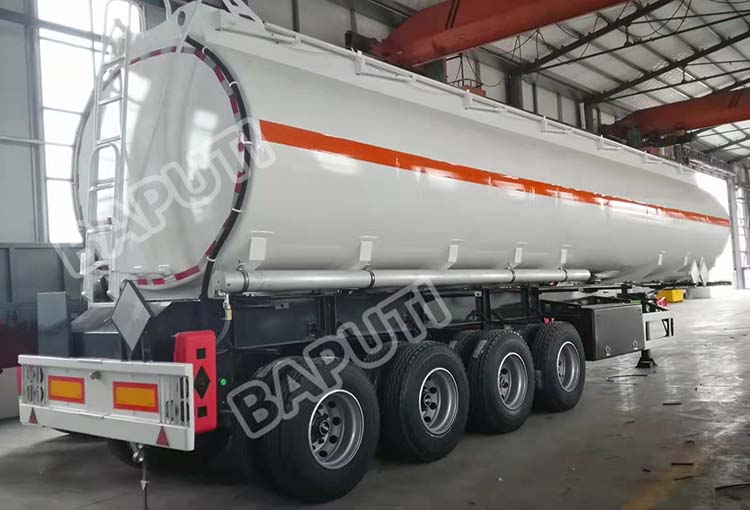

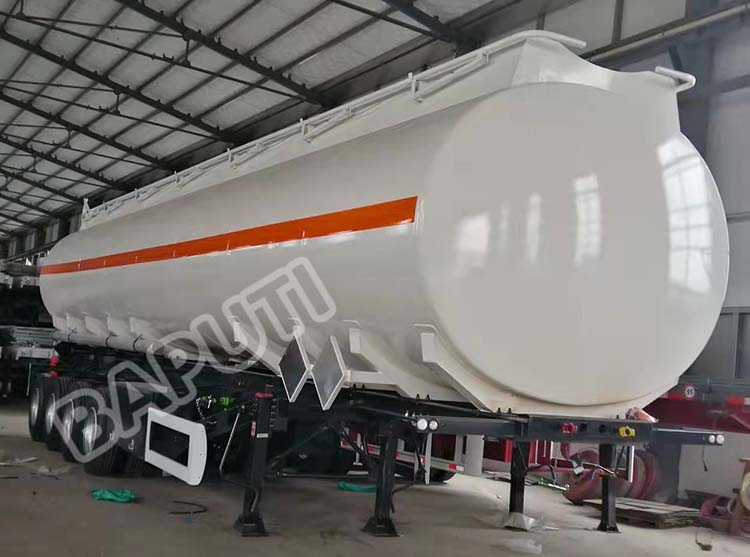

4 Axle 50000 Liters Fuel Tanker Trailer

BAPUTI 4 Axle 50000 Liters Fuel Tanker Trailer is made of carbon steel.
It is mainly used to transport fuel,JET A-1, petrol, oil, diesel, gasoline, petroleum.

The 50000 Litres tanker tank size can range from 30000Liters to 60000Liters.

The fuel tank trailer compartment can be divided into 1~9 compartments according to customer need.

The fuel tanker trailer for sale suspension can be mechanical leaf spring suspension or airbag suspension, axles can be 3 and 4 axles, and tires can be single tire 385/65R22.5 or double tires 12R22.5 or 315/80R22.5 etc..

All our exported 4 Axle 50000 Liters Fuel Tanker Trailer for sale can be designed and customized for customer according to customer requirements. Strong structurer of the oil tanker trailer is very suitable for African countries.

Specification:

Outer size(estimated): 12500*2500*3850mm

For transporting: Fuel, JET A-1, oil, diesel,petroleum, gasoline

Tank size: 50000Liters

Estimated weight: 10 ton

Main beam: Carbon steel

Tank’s Front/Rear end plate:  Carbon steel,6mm thickness

Tank body : Carbon steel,5mm thickness

Compartment: 6 pieces

Manhole cover:  Aluminium alloy manhole,6 pieces

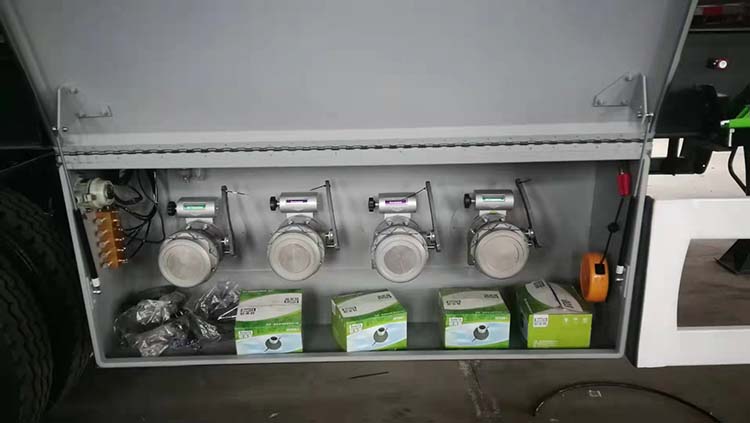

Discharging valve:  3” API discharge valve, 6 pieces

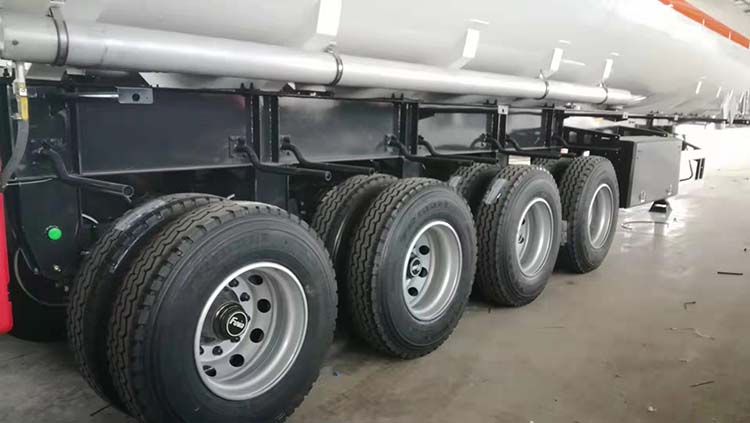

Axle : 14ton axle, 4 pieces

Tire: 12R22.5, 16pieces

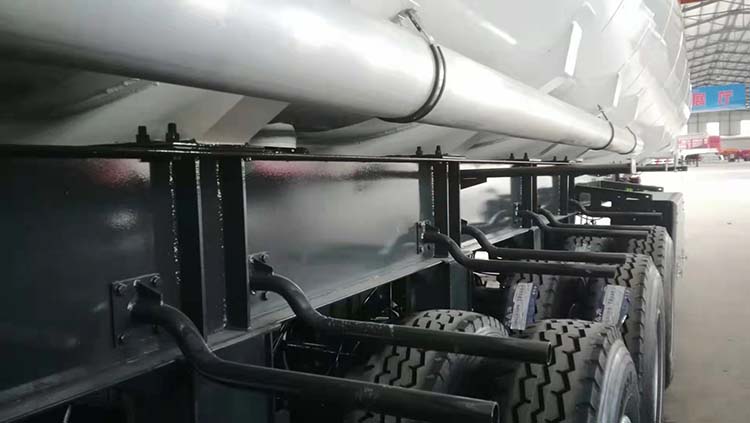

Suspension:  Airbag suspension,front axle can be lifted up(mechanical leaf spring suspension is optional)

Kin pin: 50mm/90mm can be adjustable

Brake system: Standard double brake chamber

Landing gear : 28ton landing legs

Spare tire bracket :1 piece

Light : LED light

Voltage: 24v

Receptacle:  7 ways(7wire harness)

Tool box:  1 piece

Painting and logo: According to customer’s requirement

Advantage of BAPUTI 4 Axle 50000 Liters Fuel Tanker Trailer:

1. The tank body is one -time forming,not only the production efficiency is improved, the

appearance is beautiful, and the product quality is fully guaranteed.The high quality welds

ensure no air leak,and with long service life .

2. High welding quality ensure the long service life of the fuel tanker trailer even under the most difficult road conditions.

3. With safety devices: the manhole is an explosion-proof large cover.

The bottom outlet of the tank is equipped with an emergency shut-off valve.

4. Water filled test for testing the sealing performance of tanker.

Features of BAPUTI 4 Axle 50000 Liters Fuel Tanker Trailer:

• Lighter weight for improved payload capacity

• Frameless design

• Precision rolled and fully welded barrel

• Butt-welded tank shell seams for maximum joint strength

• Long, wide sheets for ideal seam placement and barrel integrity

• Roll stability system and low center of gravity

• Trailer stability control

• Air suspension

• Low center of gravity

The BAPUTI fuel tanker trailer for sale has a unique and beautiful appearance, and the structural parts are pretreated by sandblasting; the tank body is welded with a special tank body tooling fixture, which is welded with an automatic protection welding machine; the whole vehicle is reasonably matched, reliable in performance, and cost-effective High quality and stable quality, which can meet various different needs.
