BAPUTI
| Quantity: | |
|---|---|
Product Description

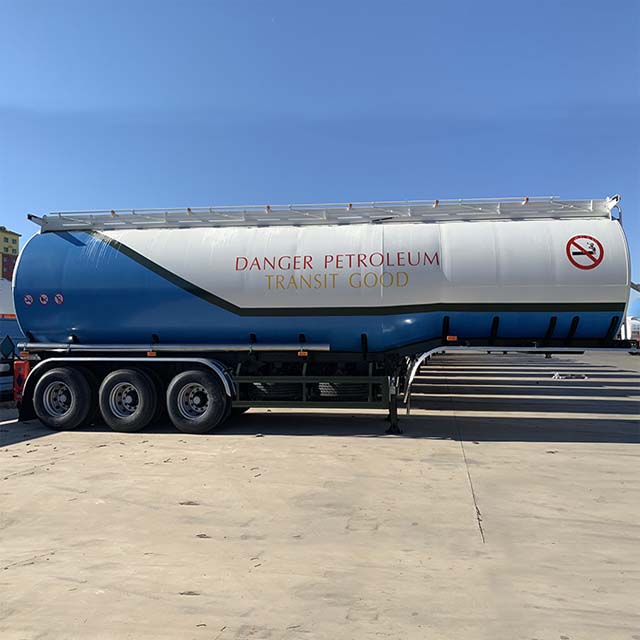

The fuel tanker trailer is made of aluminum alloy 5454.
It adopts aluminum alloy 5454,which is a typical high strength wear-resistant.
It is mainly used to transport fuel,petrol, oil, diesel, gasoline, petroleum, ethanol and other liquid substances.
The fuel tanker’s tank size can range from 30000Liters to 60000Liters.
The tank trailer’s compartment can be divided into 1~9 compartments according to customer’s need.
The fuel tank trailer suspension can be mechanical leaf spring suspension or airbag suspension, axles can be 3 and 4 axles, and tires can be single tire 385/65R22.5 or double tires 12R22.5 or 315/80R22.5 etc..
All our exported fuel tanker trailers can be designed and customized for customer according to customer’s requirements.
Specification:
| Outer size(estimated) | 12000*2500*3950mm |
| For transporting | Fuel, JET A-1, oil, diesel,petroleum, gasoline ,ethanol |
| Tank size | 45000Liters |
| Estimated weight | 7.05 ton |
| Main beam | Aluminium |
| Tank’s Front/Rear end plate | Aluminium alloy,7mm thickness |
| Tank body | Aluminium alloy,6mm thickness |
| Compartment | 4 pieces |
| Manhole cover | Aluminium alloy manhole,4 pieces |
| Discharging valve | 3”discharge valve, 4 pieces |
| Axle | 14ton axle, 3 pieces |
| Tire | 12 pieces of 315/80R22.5,double tires |
| Suspension | Airbag suspension,front axle can be lifted up |
| Kin pin | 50mm/90mm can be adjustable |
| Brake system | Standard double brake chamber |
| Landing gear | 28ton landing legs |
| Spare tire bracket | 2 pieces |
| Light | LED light |
| Voltage | 24v |
| Receptacle | 7 ways(7wire harness) |
| Tool box | 1 piece |
| Painting and logo | According to customer’s requirement |
Advantage:
1. The tank body is one -time forming,not only the production efficiency is improved, the appearance is beautiful, and the product quality is fully guaranteed.The high quality welds ensure no air leak,and with long service life .
2. High welding quality ensure the long service life of the fuel tanker trailer even under the most difficult road conditions.
3. Tank body adopts aluminum alloy 5454,is a typical high strength wear-resistant aluminum alloy.
4. Water filled test for testing the sealing performance of tanker.
Features of BAPUTI Aluminum Fuel Tanker Trailer:
1. Advanced design: finite element analysis method is adopted for the structure of the tank body and anti-wave plate, and the stress analysis model of all working conditions is established, and the lightweight design makes the strength and stiffness of the tank body better when it is lighter;
2. Shock-proof structure: The dish-shaped structure wave-proof board in the tank can effectively scatter shock waves around, reduce the local stress of the wave-proof board and protect the tank body. According to the medium and road conditions, the anti-wave board adopts the method of dense and dense arrangement, and the force of the tank is more uniform;
3. Reinforcing ring structure: The external reinforcing structure of the stainless steel tank is unique in China; the full-loading frame, the tank body bears most of the load, the weight of the whole vehicle is lighter, the tank body is not easily deformed, and it is more economical and safer.
4. Professional production: advanced automatic panel TIG welding machine, PLC programmable control technology, one-time canning forming process: reducing welding seams, high strength, smooth appearance, and stable vehicle performance;
5. Safety and environmental protection: explosion-proof manhole, emergency cut-off bottom valve (subsea valve), breathing valve, tank top coaming, sealing wiring harness, oil and gas recovery and a series of safety devices, anti-rollover, anti-collision, fire resistance, while improving loading Efficient, safe and environmentally friendly.
The BAPUTI aluminum alloy semi-trailer tanker has a unique and beautiful appearance, and the structural parts are pretreated by sandblasting; the tank body is welded with special tank body tooling and welding with automatic protection welding machine; the whole vehicle has reasonable matching and performance. Reliable, cost-effective and stable in quality, it can meet various differentiated needs.
