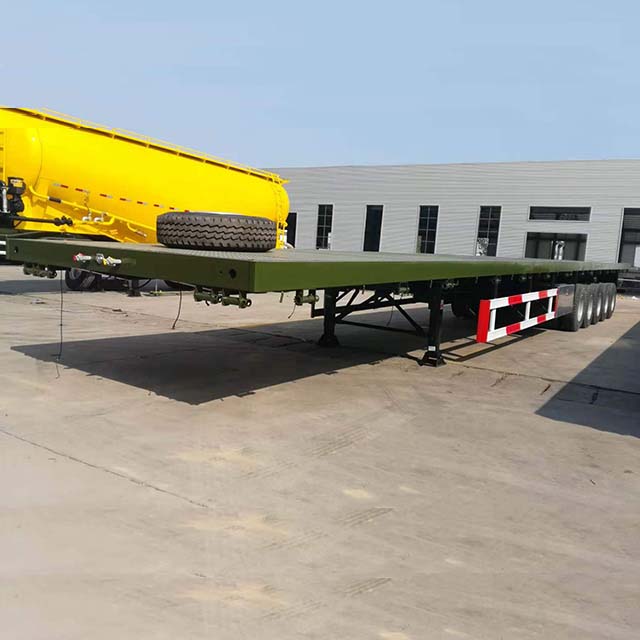

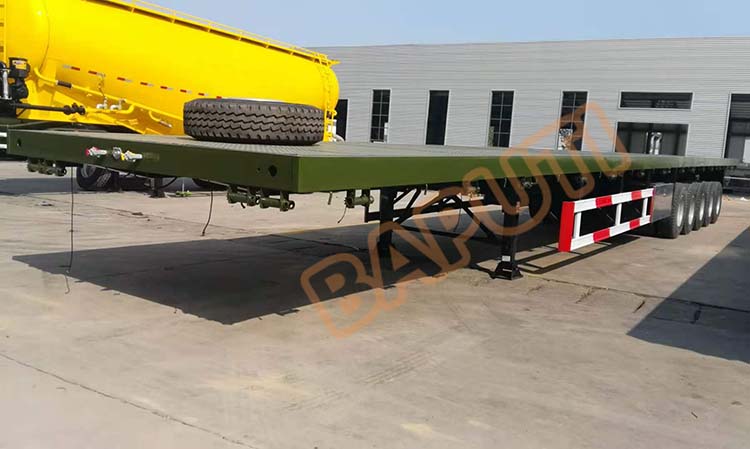

5 Axle 120 Ton Flatbed Trailer for Sale

5 axle 15 meters 120ton flatbed trailer with owns strong structure and heavy load capacity.

It is designed for heavy bulk cargo.

According to load capacity of flatbed semi trailer, we can also offer 40ton,60ton,80ton,100ton and  120ton load capacity flatbed trailers.

Features of BAPUTI 120ton flatbed semi trailer:
1. Multi Support parts

Rope Euphroes and hooks help fasten cargo, suitable for multi cargo transporting.

2. Good Painting

Surfaces cleaned by shot blasting. One epoxy coating and acrylic finish coating.

Durable against rust, support longer good looking and service life.

3. Automatic welding

Submerged arc Automatic welding construction, Key point reinforces and purposeful welding avoid some parts easier lose welding according experience

support vehicle longer time working without repairing.

4. Quality Axles, suspensions and Brake system

BPW, FUWA worldwide best axles work with WABCO brake valve, more effectively brake for safety and save cost.

Strong quality springs and suspension, support longer service life, save maintenance cost.

Specification of 5 axle 120ton flat bed Semi trailer

Tare weight : 15000kg

Loading capacity: 120T

Overall Size : 15000x2500x1500mm

I beam Chassis : Top flange plate material and thickness Q345B  25mm;Bottom flange plate Q345B  25mm;

Middle flange plate Q345B 14mm height 550mm;

Side beam height 18# U steel

Floor : Material Carbon steel Q235, 4mm thickness, Checkered plate

Axle : 25ton axle, 5 pieces

Rim : 8.5, 20 pieces

Tire: 12.00R20, 20 pieces

Suspension : Mechanical suspension

Spring leaf : 90mm width, 16mm thickness,10 layers

King pin : Bolt type,3.5inch

Brake system:  45L air tanks ,4 double spring brake chamber

Landing gear : JOST A400, 25T two speed

Spare tire carrier : 2sets

Light : LED light

Voltage : 24v

Receptacle : 7 ways(7wire harness)and quick change type

Tool box : One piece,1000x500x500mm

Painting : Polyurethane paint&anti-rust primer&sand blasting

Tools for trailer : Head wrench ;spare wheel crank ;

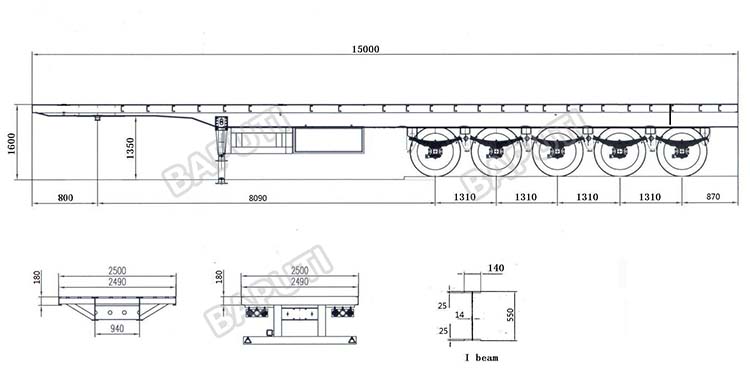

Design drawing of BAPUTI 5 axle 120 ton flatbed trailer for sale:
