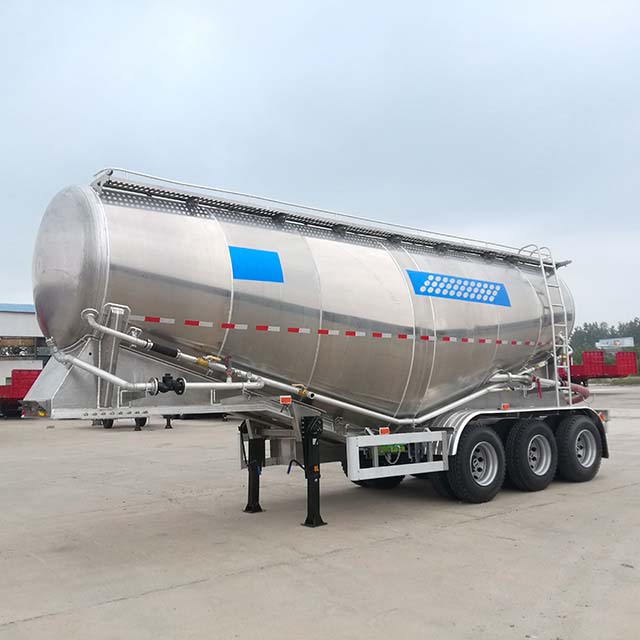

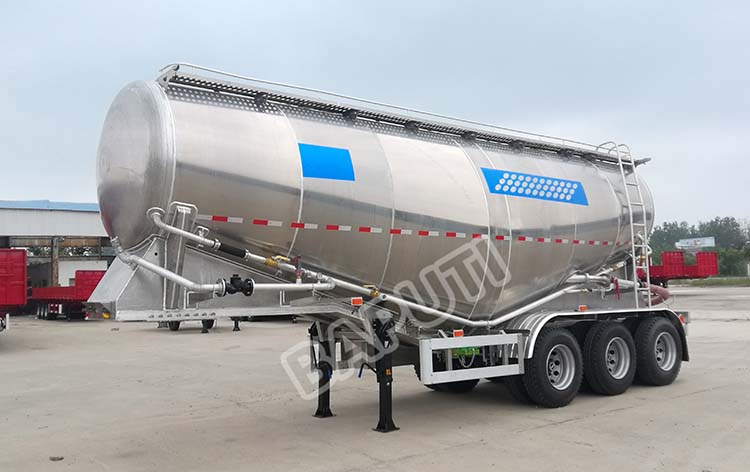

50CBM Aluminum Bulk Cement Trailer

Standardized and lightweight powder tank semi-trailers have already become the mainstream of the market, and the industry's pursuit of lighter and lighter transport vehicles is even more crazy. However, the carbon steel tank is limited by the density of the steel, and the excavated weight reduction space has become smaller and smaller. The aluminum alloy bulk cement tanker trailer is a new series of cement trailer products that BAPUTI has devotedly researched and developed according to the new situation and new normal.

The cement bulker trailer is a special vehicle for the transportation of large quantities of dust materials (bulk cement).

Regular capacity is 30-65CBM.

The bulk cement tanker trailer is suitable for the transportation and air pressure unloading of powder and dry materials such as fly ash, cement, lime powder, ore powder and other particles whose diameter is not more than 0.1mm. The vertical height of unloading exceeds 15m, and the horizontal conveying distance can exceed 5m.

The cement bulker semi trailer uses the power of its own engine to drive the on-board air compressor through the power take-off, and sends the compressed air into the air chamber at the lower part of the sealed tank through the pipeline to suspend the cement on the fluidized bed into a fluid state. , When the pressure in the tank reaches the rated value, the discharge butterfly valve is opened, and the fluidized cement flows through the pipeline for transportation.

Specification:

Overall Dimension: 13000mm*2500mm*3995mm

Tank material : Aluminium alloy

Capacity: 50 cbm (tank volume can be customized)

Axle: 3*13ton, Fuwa brand

Manhole cover: Aluminum manhole, 2 pieces

Engine: 4102 Weichai brand

Compressor: 12 cubic double cylinder Bohai brand

Suspension: Mechanical suspension(airbag suspension is optional)

Tire: 12R22.5*12 pieces

King pin: 2.00 or 3.5 inch

Landing Gear: 28T FUWA landing gear

Brake system: 2 line pneumatic brake system.

Brake chamber: Six double chamber

Electrical system: 24V,7 Pole plug. The whole set of LED lights ，include Tail lamp with turn signal, brake light & reflector, side lamp etc.

Features of aluminum alloy Aluminum Dry Bulk Cement Trailer:

Patented tank body:

the tank body is streamlined, the shape is fuller and smoother, the compression effect is good, the fluidization angle is large, the discharge is fast, the residue is small, the center of gravity of the full load is low, and the driving is safer;

New air chamber:

small airflow loss, compact structure, light weight, safe and reliable, minimized dead corners of dust accumulation, and reduced dead corner residues;

Air intake pipeline:

Modular pipeline structure, reliable use of pipeline, easy maintenance, equipped with full-bore stainless steel air inlet valve and large displacement safety valve, high air intake efficiency, good overpressure protection effect, and peace of mind;

Discharge pipeline:

large diameter 5-inch ash discharge pipe + 5-inch aluminum alloy butterfly valve, integral simmering forming, small material conveying resistance, slow pipe wear, fast discharge, optional lower discharge structure, which can greatly reduce material residues ;

Humanized accessories:

multi-purpose sampling port, humanized ladder, built-in tank cover, and universal external air source interface are convenient for customers to use in various working conditions.
