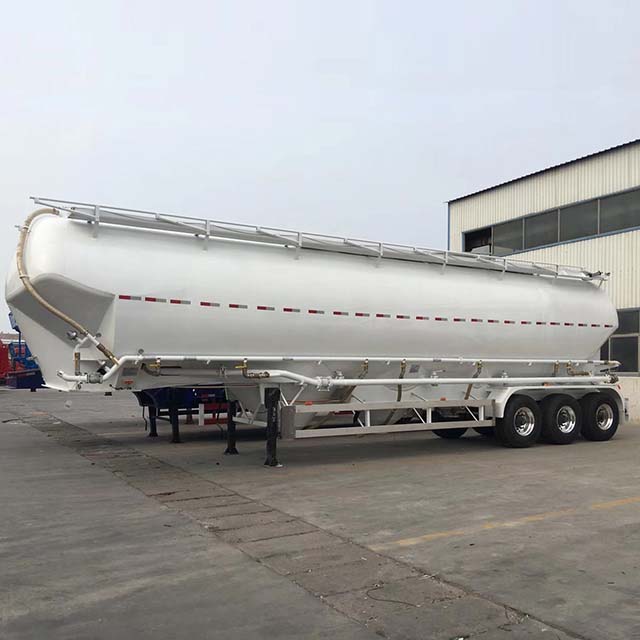

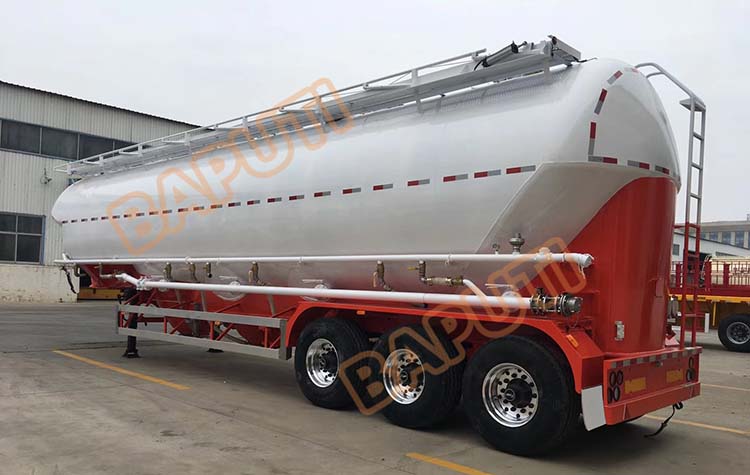

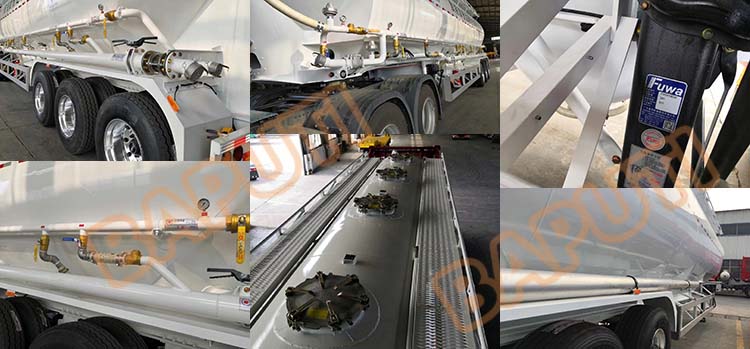

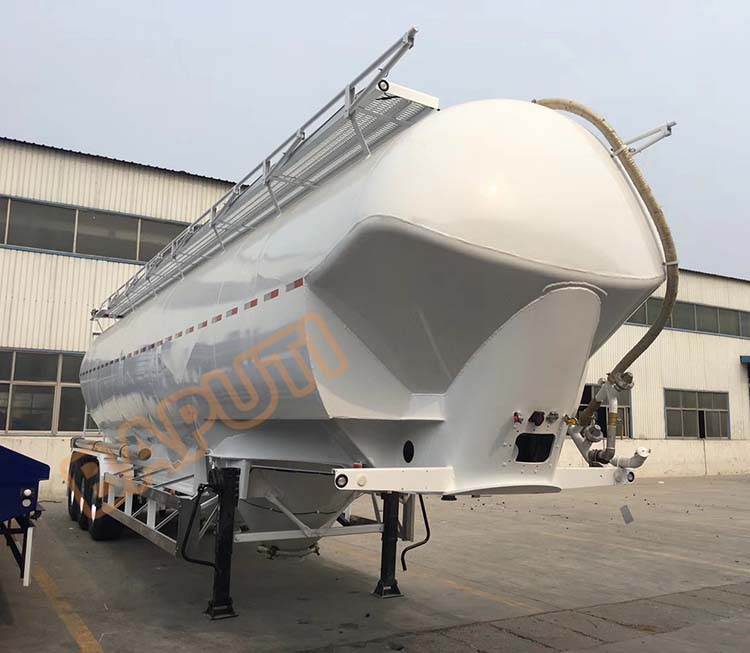

60CBM 30 Ton Flour Tanker Trailer

Flour tank trailer is suitable for carrying flour and other powder material with a particle diameter of no more than 0.1mm. Flour tanker trailer mainly transports edible powdered food. Flour tanker semi trailer capacity 20 to 50 ton, volume 40 to 100 cbm.

Specification:

Outer size:  13000x2500x4000mm

Volume:  60cbm

Tank assembly

Front/Rear end plate : Material Aluminum 5183,thickness 6mm

Tank body : Material Aluminum 5183 Thickness 5mm

Test  pressure:  0.2Mpa

Compartment:  5

Manhole cover : Diameter 500,Material  Aluminum,5pcs

Air-charging system:  Check valve  2 inch ,Safe valve  1.5inch, Booster valve  2 inch

Discharging pipe : Diameter 4 inch ,Rubber hose,2pcs

Axle : Fuwa 13ton, 3 pieces

Tire:12R22.5, 12pcs

Suspension : Mechanical

King pin :  Bolts type ,2 inch

Brake system:  Relay valve

Brake chamber: 4 double spring brake chamber

Landing gear :JOST ,E100 two speed

Spare tire carrier:             NO

Light :            LED light

Voltage :            24v

Receptacle:  7 ways(7wire harness)and quick change type

Tool box : One piece,1000x500x500mm

Painting:  Polyurethane paint&anti-rust primer&sand blasting

Tools for trailer:  Head wrench ;spare wheel crank ;

Design drawing of 60CBM 30ton Flour Tanker:
