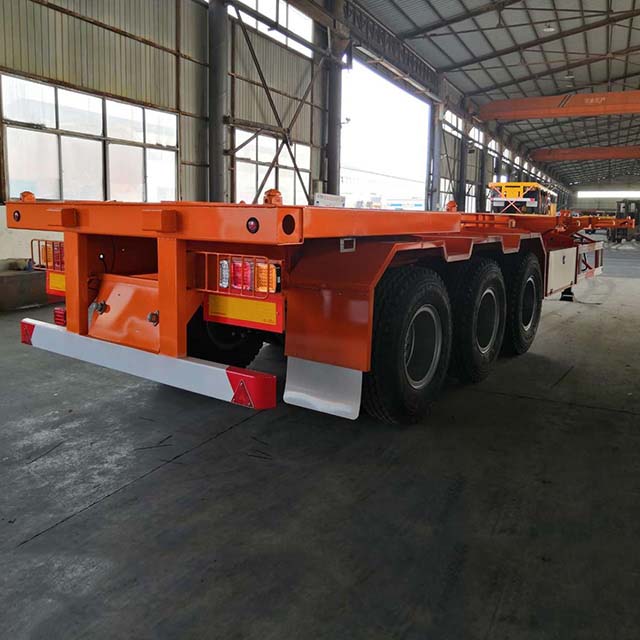

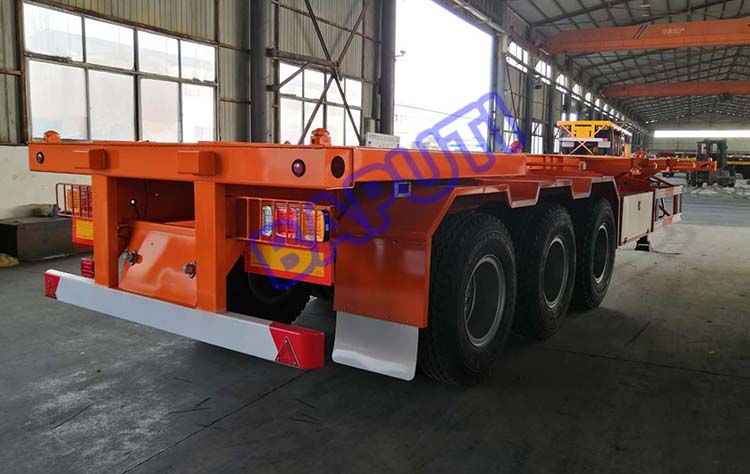

3 Axle 40ft Skeleton Trailer for Sale

The Tri Axle 40ft Skeleton Trailer is also called container chassis, and it is a specialized semi trailer for transporting containers.s keleton trailer choose Q345B carbon or T700 high strength steel, and we adopt world famous brand of parts, like JOST, WABCO braking valve, BPW/FUWA axle etc.,which made the whole trailer quality strong quality.

Except 40ft skeleton semi trailer, we also produce 40ft, 45ft, 48ft,52ft skeleton container chassis trailers, with 2 axle, 3 axle and 4 axle.

We can customize the container chassis according to customer's need.

Specification:

Overall dimension: 12500x2500x1700mm

Container twist lock: 12 pieces

Loading weight: 40000kg

Main beam : Carbon steel Q345B.The height 500 mm, upper plate 14mm,down plate 16mm,middle plate 8mm.

Side beam: 16mm channel steel

Traction pin: 2” (50mm) or 3.5’’(90mm) optional

Land gear :Standard 28ton

Axle: 13ton * 3 axle Fuwa brand

Spring leaf: 90mm*13mm*10 pieces

Suspension: Mechanical suspension (Airbag suspension optional)

Tire: double tire 12R22.5/315/80R22.5, 12 pieces/super single tire 385/65R22.5, 6 pieces is optional

Valve: WABCO RE 6 relay valve

Brake Chamber: T30/30+T30 Spring brake chamber

Tool box :1 piece

Spare wheel carrier: 2 pieces

Marker lamp: LED type

Voltage: 24V

Receptacle: 7ways (7 wire harness)

Painting :  Complete  Chassis  sand  blasting  to  clean  rust,  1  coat  of  anti-corrosive prime, 2 coats of final paint
