SINOTRUK HOWO
Carbon Steel, Aluminum alloy, Stainless Steel are optional
5000Liters ~ 35000 liters
Round,oval and oblong are optional
| Quantity: | |
|---|---|
Product Description

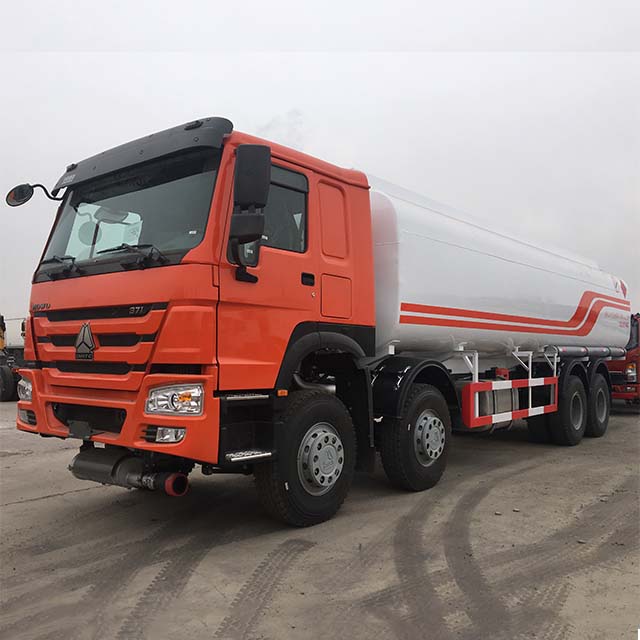

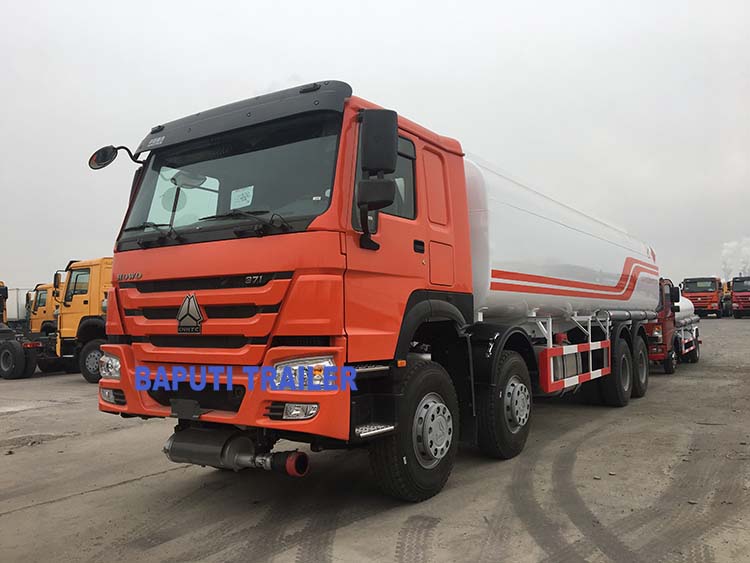

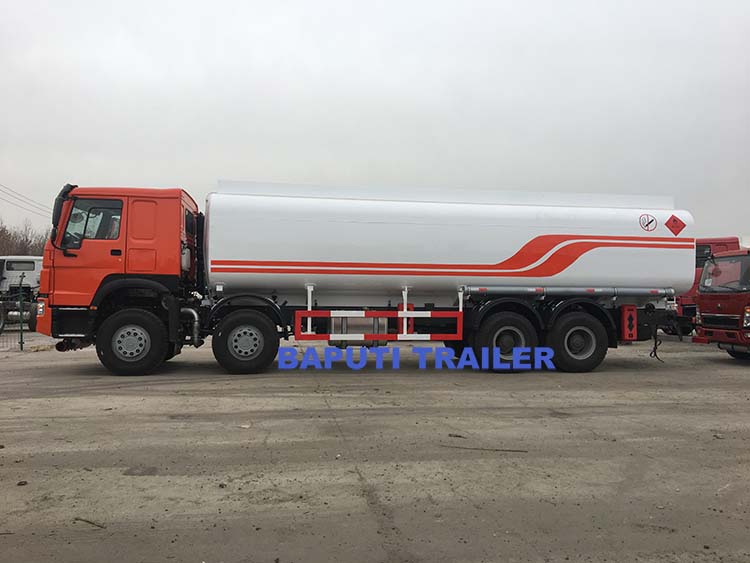

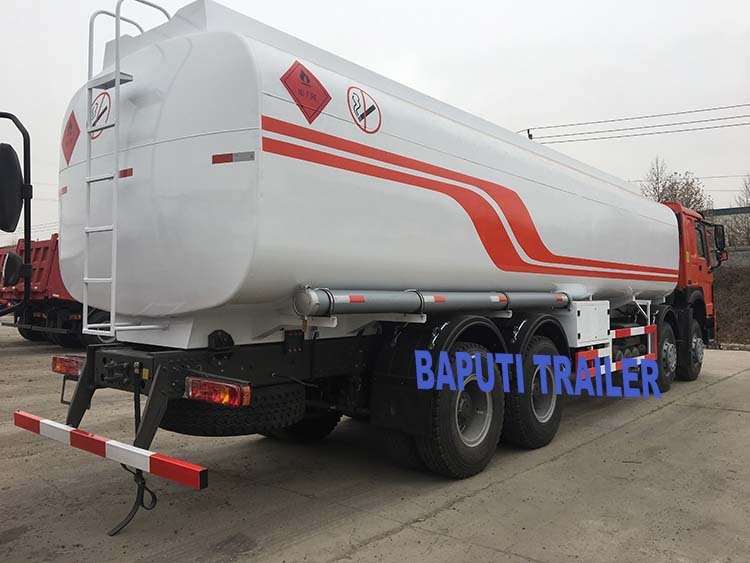

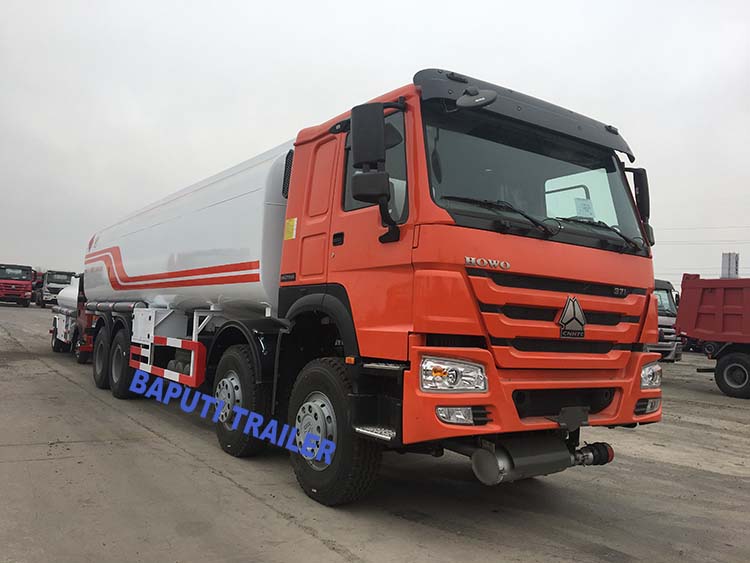

SINOTRUK HOWO 8X4 30000 Liters Fuel Tank Truck
Fuel tank truck (also called oil tank truck,petrol tanker truck,fuel dispenser truck, diesel dispensing truck) is used to transport oil,diesel,gasoline,kerosene,etc.
The fuel truck equipped with fuel dispenser is a mobile fuel dispensing truck.
It is used to pump gasoline, diesel, ethanol fuel, bio-fuels like bio-diesel,kerosene, or other types of fuel into vehicles.Oil pump equipped,with pump in pump out function.
Tank truck’s tank material and volume size:
We offer tank truck volume is from 5000L-35000L,tank materials can choose carbon steel,stainless steel and aluminum.The tank material adopts high-quality 4-6mm thick carbon steel, stainless steel, or aluminum alloy.
Tank truck’s function: According to different uses and work environments, there are a variety of refueling or fuel/oil transportation functions, with oil absorption, oil pumping, and a variety of oil separation and distribution functions. The tank body can be divided into several compartments to transport different types of fuels,lubricant,crude oil,alcohol,etc.
Transport medium: applicable to the transport of gasoline, kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products of alcohol, aldehyde, benzene, ether and other liquid substances as the chemical transport tank trucks.
Options for the fuel/oil truck: fuel dispenser, fueling gun,reel, oil pump, API oil/fuel discharge valve, oil-gas recovery system, flow meter, liquid level instrument etc.
Specification of the fuel/oil tanker truck:
Cabin | HW76 Cab, One sleeper bed, with A/C | |
Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 12295×2496×3350 |
Wheel base (mm) | 1800+4600+1350 | |
Wheel track (front/rear) (mm) | 1830/1830 | |
Approach/Departure angle(°) | 16/14 | |
Weight in KGS | Tare Weight(Kgs) | 14280 |
payload(Kgs) | 30000 | |
Front axles loading capacity(Kgs) | HF7 2x7000 | |
Rear axles loading capacity(Kgs) | ST16 2x16000 | |
Max. driving speed(km/h) | 90 | |
Engine | Brand | Sinotruk |
Model | WD615.47 | |
Horse Power(HP) | 371HP | |
Emission standard | Euro II | |
Gearbox | HW19710, 10 forwards & 2 reverse | |
Fuel tank | 400 L | |
Tire | 12R22.5 tires with one spare | |
Fuel/oil tank volume | Tank volume: 30cbm(30000 liters) (Tank size can be designed according to customer requirement) Two compartments (compartments can be divided according to customer's requirement.) Tank thickness: 5mm high tensile strength steel.,End plate thickness: 6mm high tensile strength steel. (aluminum and stainless steel tank material are optional) Optional: fuel dispenser, fueling gun,reel, oil pump, API oil/fuel discharge valve, oil-gas recovery system, flow meter, liquid level instrument etc. | |
