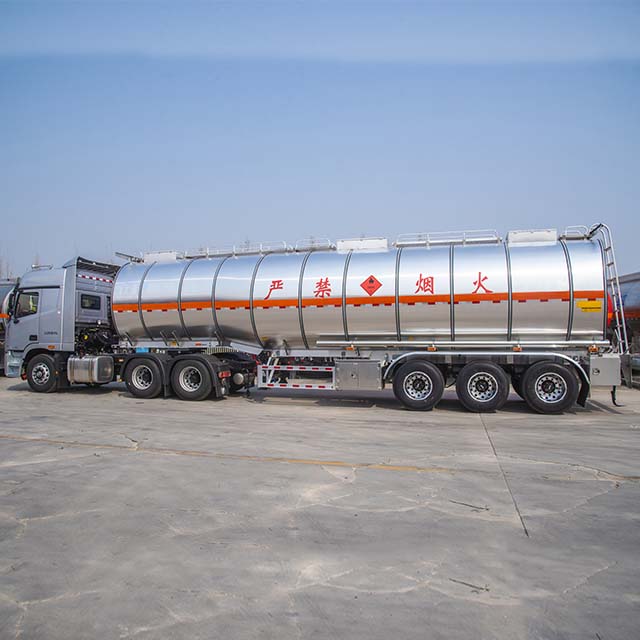

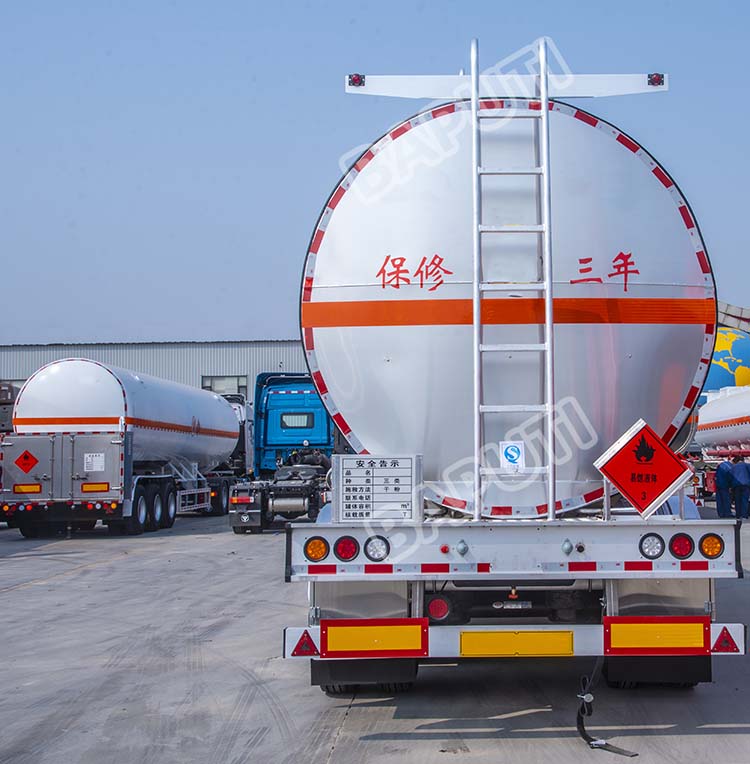

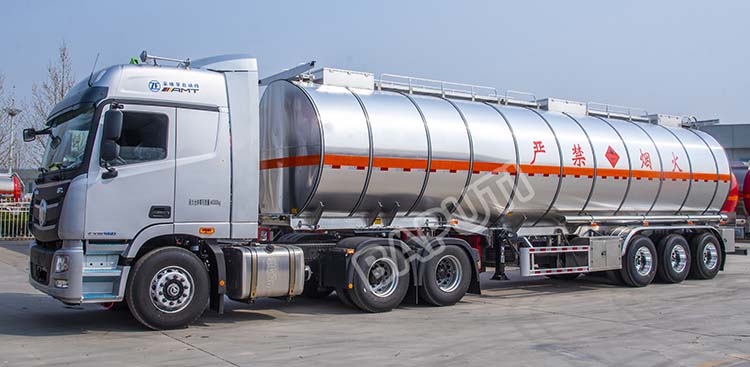

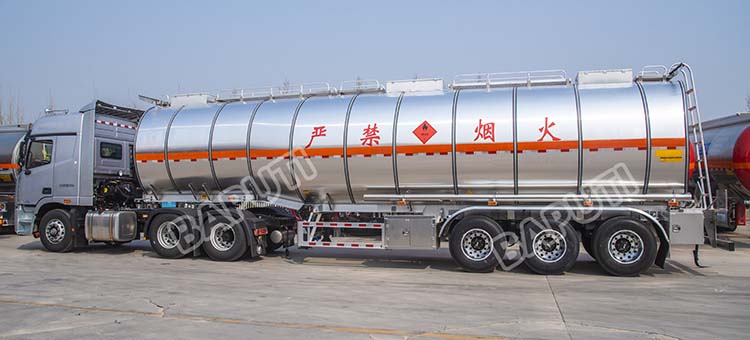

45000Ltrs Palm Oil Tanker Trailer

45000Ltrs Palm Oil Tanker Trailer is specialized in transporting palm oil.

Except palm oil, Aluminum oil tanker semi trailer is mainly used to transport cooking oil, crude oil, water,milk,fuel,petrol, diesel, gasoline, petroleum, ethanol and other liquid substances.
The aluminium tanker tank size can range from 30000Liters to 60000Liters.

The palm oil tank trailer compartment can be divided into 1~9 compartments according to customer need.

The aluminum palm oil tanker suspension can be mechanical leaf spring suspension or airbag suspension, axles can be 3 and 4 axles, and tires can be single tire 385/65R22.5 or double tires 12R22.5 or 315/80R22.5 etc..

All our exported Palm Oil Tanker Trailer for sale can be designed and customized for customer according to customer requirements.

Specification:

Outer size(estimated): 11800*2500*3900mm

For transporting: Edible oil, palm oil, oil,fuel,diesel,petrol

Tank size: 45000Liters

Estimated weight: 7 ton

Main beam : Aluminium

Tank’s Front/Rear end plate:  Aluminium alloy,7mm thickness(stainless steel food grade 316L is optional)

Tank body : Aluminium alloy,6mm thickness(stainless steel food grade 316L is optional)

Compartment: 3

Manhole cover : Aluminium alloy manhole,3 pieces

Discharging valve:  3”discharge valve, 3 pieces

Axle : 14ton axle, 3 pieces

Tire:  12 pieces of 12R22.5

Suspension : Airbag suspension,front axle can be lifted up

Kin pin: 50mm/90mm can be adjustable

Brake system:  Standard double brake chamber

Landing gear:  28ton landing legs

The reasons for choosing aluminum palm oil tanker semi trailer:

1.The aluminum oil tanker is lighter in weight and larger in load capacity, so higher economic benefits can be obtained.

2. Since the aluminum fuel tanker trailer is lighter than the carbon steel tanker, it reduces the fuel consumption and tire wear during transportation, thereby reducing the daily maintenance costs.

3. The inside surface of aluminum tank will not rust during several years of use, which directly guarantees the quality of the oil to be transported.

4. Aluminum tank trailer has good electrical conductivity and more safe driving.

5.The service life of aluminum tank trailer is much longer, compared to carbon steel tankers.

6. The recycling value of aluminium is more than 85% of the original aluminum.

Features of BAPUTI 45000Ltrs Palm Oil Tanker Trailer:

1.Better material selection:

The tank material is made of high-quality aluminum alloy sheet, especially the special type of aluminum alloy sheet developed in cooperation with domestic brand aluminum alloy manufacturers, which can be used to manufacture aluminum alloy thermal insulation tankers and pressure tankers. A higher-grade medium (such as methanol, etc.) is required.

2.Professional setting:

The tank body panel adopts longitudinal tailoring and 13m large tailor-welding equipment, which can minimize the number of tailor-welded seams. The tank body is formed by a 13m canning equipment, which changes the traditional tank car forming mode, and the overall straightness of the tank body is better. The tank body is welded with special tank body tooling fixtures, and is welded with an automatic protection welding machine. The application of special equipment can more effectively ensure the overall quality of the tank body.

3.Complete safety devices, high safety:

1). Explosion-proof device: The oil tanker adopts explosion-proof manhole, which can avoid a large amount of leakage of the medium in the tank once the vehicle rolls over; it can also release the gas in the tank in an emergency when the tanker has an accident or fire, effectively preventing the explosion of the tanker. . The chemical vehicle is equipped with a large-displacement safety valve, which can effectively prevent explosion accidents.

2). Emergency cut-off bottom valve (subsea valve): When the discharge pipeline is hit, the emergency cut-off valve can be disconnected from the shear groove to prevent a large amount of medium leakage in the tank.

3). Breathing valve: The breathing valve has the functions of anti-overflow, anti-rollover and fire resistance. The rollover of the tank will not cause medium leakage.

4. Tank top protection device: The solid hoarding protection structure can protect the tank top accessories from being hit even if the vehicle rolls over.

5. )Electrical system: the integrated wiring harness is adopted,and the connectors connected to the lamps are waterproof connectors, which has higher overall safety.

The BAPUTI 45000Ltrs Palm Oil Tanker Trailer For Sale has a unique and beautiful appearance, and the structural parts have undergone sandblasting pretreatment process; the tank body is welded with a special tank body tooling fixture, which is welded with an automatic protection welding machine; the whole vehicle is reasonably matched, reliable in performance, and cost-effective High quality and stable quality, which can meet various different needs.
